Complete Guide to Introduction to Neural Networks

Introduction to Neural Networks

Introduction to Neural Networks
Introduction to Neural Networks

The brain-inspired powerhouse neural networks (NNs), which are conceptually “inspired by the structure and function of the human brain,” are a crucial subset of machine learning. These computational models are made to recognize intricate correlations and patterns in data, which empowers them to handle a wide variety of jobs. The range of these skills includes “image recognition and natural language processing to medical diagnosis and financial modelling.”

Neural network history

Neural networks have a longer history than most people realize. Although the concept of “a machine that thinks” dates back to the Ancient Greeks, we’ll concentrate on the major moments that shaped the development of neural network theory, which has fluctuated in acceptance throughout time:

1943 : Publication of “A logical calculus of the ideas immanent in nervous activity” by Warren S. McCulloch and Walter Pitts. The goal of this study was to comprehend how the human brain’s network of interconnected neurons could generate intricate patterns. The comparison of neurons with a binary threshold to Boolean logic (i.e., 0/1 or true/false assertions) was one of the key concepts that emerged from this work.

1958: According to his study “The Perceptron: A Probabilistic Model for Information Storage and Organization in the Brain,” Frank Rosenblatt is credited with creating the perceptron. By adding weights to the formula, he goes beyond the work of McCulloch and Pitt. Rosenblatt was able to teach a computer to differentiate between cards with the left and right markings .

1974: Although the concept of backpropagation was developed by a number of scholars, Paul Werbos was the first American to mention its use in neural networks in his doctoral thesis.

1989 : Publication of a study by Yann LeCun that demonstrated how backpropagation constraints and their incorporation into neural network architecture might be utilized to train algorithms. In order to identify handwritten zip code digits supplied by the USPS, this study effectively used a neural network.

History of Neural Networks
Image credit Napkin.AI
History of Neural Networks

Essential Features:

  • Although they are not an exact duplicate, their hierarchical, networked arrangement of “nodes” or “neurons” closely resembles biological brain networks.
  • NNs, or data-driven learning, “learn by identifying patterns and relationships in large datasets, adjusting their internal parameters to improve their performance on a given task.”
  • Non-linearity: An essential characteristic that enables them to “model complex, non-linear relationships in data, which traditional linear models cannot.”
  • Flexibility: They can pick up new skills and adjust to new information.
  • Parallel processing is frequently possible due to their computational nature, which makes them effective for solving large-scale issues.

Basic Principles and Elements: Building Blocks


Neural networks are constructed using a number of fundamental elements:

Nodes, or neurons:

The Basic Unit The simplest processing unit, a neuron, can carry out basic calculations. Each neuron

  • “Receives inputs from other neurones or external data.”
  • Multiplies inputs by the “weight,” which stands for connection strength.
  • These weighted inputs are added up.
  • Enables activation even with zero inputs by adding a bias term, which offers flexibility.
  • Gives the outcome a “activation function.”

Hierarchical Processing Layers

Because neurons are arranged in layers, information processing is structured hierarchically:

  • The input layer is the first layer to receive raw data; its number of neurones usually corresponds to the number of characteristics in the data.
  • Between input and output are hidden layers, which “perform the majority of the complex computations, extracting increasingly abstract features and patterns.” Multiple hidden layer networks are referred to as Deep Neural Networks (DNNs), which are the foundation of “deep learning.”
  • The output layer is the last layer that generates the predictions for the network. Here, the number of neurones varies according to the job (e.g., several for multi-class, one for binary classification).

Biases and Weights: The Learnable Factors

  • Weights: “Numerical values associated with each connection between neurons,” which establishes the strength of the input signal. These are modified while training.
  • Biases (b): When extra parameters are introduced to the weighted sum, the activation function can change and fit a larger range of data.

Activation Functions

Introducing Lack of linearity

It is because of these functions that “introduce non-linearity into the neural network.” Without them, a neural network’s ability to learn would be severely limited because it would only be a linear model, regardless of depth.

  • For binary classification probabilities, a sigmoid is a handy tool that produces values between 0 and 1.
  • The output of Tanh (Hyperbolic Tangent) is zero-centered and ranges from -1 to 1.
  • ReLUs (Rectified Linear Units) are computationally efficient and “widely used in hidden layers.” They output the input if it is positive or zero, otherwise.
  • The output layer for multi-class classification uses Softmax, which transforms values into a probability distribution where the sum of the class probabilities equals 1.

How Neural Networks Learn

To reduce the discrepancy between expected and actual values, neural networks train iteratively by modifying weights and biases. It includes:

Forward Propagation (Feedforward): Forecasting the Movement of Data in the Network:

  • The input layer is filled with raw data.
  • To apply bias, each neuron computes the weighted sum of its inputs (z = Σ(wi * xi) + b).
  • The output of the neuron is generated by passing the result (z) through an activation function.
  • Layer after layer, this procedure is repeated until the output layer produces a forecast.

Loss Function: Measuring Error (Cost Function)

The resulting value “quantifies the error or discrepancy between the predicted output and the true output.” Some examples are as follows:

  • Binary Cross-Entropy: For categorization in binary.
  • For classification into many classes, categorical cross-entropy is used.
  • Mean Absolute Error (MAE) divided by Mean Squared Error (MSE): for regression problems.

Backpropagation:

The Fundamental Algorithm for Learning Backpropagation refers to “a method for efficiently calculating the gradients of the loss function with respect to the network’s weights and biases.”

  • The output layer calculates error.
  • After that, the error spreads backwards through the levels.
  • Gradients (∂L/∂w and ∂L/∂b) are calculated to show the contribution of each bias and weight to the error.
  • An optimizer then guides the adjustment of weights and biases in a manner that minimizes error.

Optimizers: Guiding the Learning

An algorithm known as an optimizer “updates the weights and biases of the neural network during training, aiming to minimize the loss function.” They are in charge of “learning rate (step size).”

  • Gradient Descent (GD): Updates according to the gradient of the entire dataset (slow for large datasets).
  • Stochastic Gradient Descent (SGD): Faster but noisier, updates follow each training example.
  • Mini-Batch Gradient Descent: The most popular method, which updates following the processing of tiny “mini-batches” of samples.
  • Adaptive Moment Estimation, or Adam: An extremely successful optimizer that adjusts the learning rate for every parameter.
  • An additional adaptive learning rate optimizer that aids in reducing gradient problems is RMSProp.

Learning Rate (α): Controlling Step Size

The magnitude of weight and bias modifications are determined by this important hyperparameter.

  • Too high: May beyond the ideal outcome.
  • Too low: May result in trapping in local minima and extremely sluggish training.

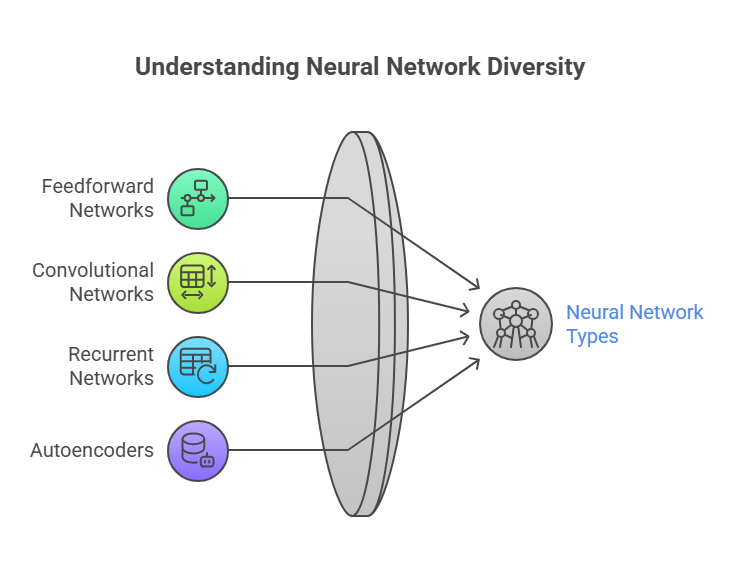

Neural Network Architecture Types

Neural Network Types
Neural Network Types


Different NN architectures are better for different tasks:

Feedforward Neural Networks (FNNs) / Multilayer Perceptrons (MLPs):

  • The most basic kind, with data moving in a single direction (input -> hidden -> output) and no loops. Adjacent layers of neurons are usually “fully connected.”
  • Applications include regression analysis, pattern recognition, and basic categorization.

Convolutional Neural Networks (CNNs):

  • Overview: “Specialized for processing data with a grid-like topology, such as images, videos, and sometimes audio.” They employ “convolution” processes.
    • Crucial Elements: Convolutional Layers: Use filters to identify distinct features (textures, edges).
    • By reducing dimensionality, pooling layers strengthen the network against changes.
    • Fully Connected Layers: Carry out the last regression or classification.
  • Uses: “Image recognition, object detection, facial recognition, medical image analysis, computer vision.”

Recurrent Neural Networks (RNNs):

  • Description: Designed for “sequential data, where the order of information matters (e.g., text, time series, speech).” They have internal loops that give them “memory”
  • The vanishing gradient problem is a challenge that makes learning long-term dependencies challenging.
  • Natural language processing (NLP) applications include “time series forecasting, speech recognition, machine translation, and language modelling.”

Long Short-Term Memory (LSTM) Networks and Gated Recurrent Units (GRUs):

  • Using “gates” to regulate information flow, RNN variants were created to get around the vanishing gradient issue and capture long-term interdependence.
  • For extended memory, LSTMs include a cell state in addition to input, output, and forget gates.
  • GRUs: More straightforward than LSTMs, they provide a balance between efficiency and performance.
  • Use cases: “Machine translation, speech recognition, sentiment analysis, text generation.”

Generative Adversarial Networks (GANs):

  • Consists of two rival neural networks: a discriminator and a generator.
    • Generator: Acquires the ability to generate new data that resembles the training data, such as realistic pictures.
    • Learns to distinguish between authentic and fraudulent data.
  • In training, the generator attempts to trick the discriminator in an adversarial process that produces “highly realistic synthetic data.”
  • Applications include “Image generation, style transfer, data augmentation, creating realistic synthetic data.”

Transformer Networks:

  • It is a “revolutionary architecture that has largely replaced RNNs/LSTMs in many NLP tasks.” In order to facilitate parallel processing and improve long-range dependency capture, they employ a “attention” method to assess the significance of various input sequence components.
  • Applications include “Machine translation, text summarization, question answering, large language models (LLMs) like BERT and GPT.”

Training and Optimization Techniques: Enhancing Performance

Several methods are essential for enhancing NN training and avoiding frequent problems like overfitting, even outside optimisers:

Data Preprocessing:

  • When features are scaled to a comparable range, normalization and scaling “help prevent some features from dominating the learning process and speed up convergence.”
  • Removing or imputing missing values is one way to handle them.
  • Making a code Transforming categorical features into numerical representations is known as categorical data conversion.

Weight Initialization:

Appropriate initialization prevents vanishing or ballooning gradients:

  • Initialization for Sigmoid and Tanh in Xavier/Glorot.
  • For ReLU and its variations, he initialization.

Regularization: Preventing Overfitting

Avoiding Overfitting Strategies to stop the model from memorizing training data too thoroughly and underperforming on unknown input:

  • L1/L2 Regularization (Weight Decay): Discourages big weights by adding a penalty to the loss function dependent on weight magnitude.
  • “Randomly ‘drops out’ (sets to zero) a percentage of neurones during training,” or “dropout,” forces the network to acquire resilient properties and lessens its dependence on particular neurones.
  • Early halting: Even if training loss keeps declining, monitoring validation loss and halting training when it stops getting better.

Batch Normalization:

By normalizing layer activations and eliminating internal covariate shift, batch normalization enables “higher learning rates and faster training.”

Data Augmentation

Enhancing generality and variety by generating additional training examples through the transformation of current data (e.g., rotating photos).

Real-World Applications: Ubiquitous Impact


Neural networks have revolutionized several industries:

  • Image Recognition: “Facial recognition, object detection in self-driving cars, medical image analysis (e.g., detecting tumors).”
  • Natural Language Processing (NLP): “Sentiment analysis, chatbots, text summarization, spam filtering, machine translation (Google Translate),”
  • Speech Recognition: (Siri, Alexa, Google Assistant), transcribing audio”: speech recognition.
  • Financial Modeling: Algorithmic trading, credit scoring, risk management, and fraud detection are all included in financial modelling.
  • Healthcare: “Disease diagnosis, drug discovery, personalized treatment plans.”
  • Robotics: managing and navigating robots.
Neural network Applications
Image credit to Napkin.AI
Neural network Applications

In conclusion:

Neural networks have been thoroughly covered in this briefing, including their fundamental elements, complex learning mechanisms, several architectural styles, and essential training techniques. The field is active, with new developments appearing on a regular basis. To further explore this fascinating field and comprehend their significant influence on artificial intelligence, one must have a solid comprehension of these fundamental ideas.
