Data Modelling in PostgreSQL
Determining the structure of data and its interactions while utilising PostgreSQL’s object-relational database management system (ORDBMS) features is known as data modelling. It uses logical, conceptual, and physical viewpoints to efficiently arrange data and convey business requirements. With tables, columns, and a variety of constraints including PRIMARY KEY, FOREIGN KEY, NOT NULL, CHECK, UNIQUE, and EXCLUSION to preserve data integrity, PostgreSQL supports common relational notions. Because it is extensible, users can add new operators, data types, functions, and index techniques without changing the basic system.
This is one of its main advantages. Numerical, character, date/time, boolean, geometric, network address, bit string, full-text search types (tsvector, tsquery), UUID, XML, and JSON/JSONB are among the many native data types that are included in this. It can also manage semi-structured data, much like NoSQL databases. Users can use CREATE TYPE to create composite types that describe a row structure, generate DOMAIN to generate types with specified constraints, or CREATE enumerated kinds to create bespoke data types for advanced modelling. With PostgreSQL’s unique table inheritance feature, child tables can inherit parent table structures, simplifying designs and facilitating declarative partitioning (Range, List, and Hash) for huge datasets to improve performance and facilitate administration.
A federated database environment is also promoted by Foreign Data Wrappers (FDW), which enable the integration and querying of foreign data as though they were local tables. In addition to helping with management, security, and name collision avoidance, schemas further arrange database items into logical namespaces. By managing a variety of PostgreSQL database items and offering graphical interfaces for Entity-Relationship Diagrams (ERDs), tools such as DBeaver make this process easier.
Importance of Data Modeling
For multiple reasons, data models are essential.
Business Requirement Translation:They assist in the modelling and conversion of business requirements into a relational database structure.
Data Consistency:Data models are essential to an enterprise’s ability to achieve data consistency throughout multiple interdependent systems. Data can become inconsistent and misinterpreted if definitions are unclear.
Preventing Fixed Complex Structures: Preventing complex and inflexible data structures can be achieved by avoiding the definition of business rules at the database level. It is important to concentrate on what must be done rather than how.
Design Validation and Performance: Database developers must closely monitor the design during the design phase, confirm user needs, and run benchmarks to guarantee performance. Design modifications may result in major complications later on, including data migration.
Data Model Perspectives
Data modelling encompasses three primary viewpoints, per ANSI:
Conceptual Data Model: The primary players, concepts, and business rules are communicated using this model, which also provides the domain semantics. It facilitates communication between business departments and developers by representing high-level business needs. For both developers and business users, the Entity-Relation (ER) model captures and represents the data model.
Logical Data Model: In data modelling, the Logical Data Model acts as a bridge by explaining the semantics of data in a way that is unique to a particular technology, like an object-oriented language’s UML class diagram. Along with the conceptual and physical data models, it is one of the three main data model views established by ANSI. Because modifications to the physical or logical data models can be applied without requiring changes to the conceptual model, this structured abstraction promotes flexibility.
Physical Data Model: This model covers topics like storage area networks, tablespaces, and CPUs and describes how data is really stored and processed at the hardware level. For example, logical and physical data models can be modified without impacting the conceptual model, demonstrating how this abstraction permits modifications to one perspective without necessarily changing the others.
Entity-Relation (ER) Model
ER is a fundamental conceptual data modelling method. It symbolises the fundamental parts of a database:
Entities: Entities are concepts or real-world items, like a car or a consumer. An entity may be categorised as:
Strong (Regular) Entity: A Strong (Regular) Entity is a core data modelling notion that represents an autonomous real-world object. Strong entities have essential attributes that distinguish them in the system. Unique key qualities are essential for identifying the item in the actual world, although they may not be a primary key during physical modelling.
Weak Entity: A weak entity is one that lacks essential characteristics of its own and is typically associated with a strong entity. The discriminator, which is a partial key, gives it a distinctive identity in connection to the identifying entity.
Attributes: Characteristics that define an entity are called attributes. An example might be a customer entity with characteristics for first name, last name, and email. Names and domains are characteristics that specify the range of values that can be assigned to them. Attributes are indivisible, or assigned atomic values, according to the formal relational model.
Composite Attributes: Composite attributes are those that can be broken down into smaller components, such as initial name and last name.
Multi-valued Attributes: Attributes with numerous values are known as multi-valued attributes (e.g., colour for an automobile).
Derived Attributes: properties that are derived from other properties, such as total rank derived from user ratings and ads, are known as derived attributes.
Relationships: Describe the connections between entities in terms of relationships. For instance, a seller may market an automobile. Relationships may also have characteristics (e.g., the date of the relationship’s campaign).
The rules for mapping an ER diagram to a database schema, or collection of relations, are generally simple but flexible. Organising related columns and relations to minimise data redundancy is a common method known as normalisation. While updating duplicate information, this helps prevent problems like data discrepancies. Tight coupling that results in complex data structures and null saturation for sparse data are two difficulties in data modelling.
UML Class Diagrams
Widely used in modelling software systems, class diagrams in the Unified Modelling Language (UML) can depict a variety of linkages, features, and techniques. They are simple to translate from ER diagrams and have a number of benefits.
Code Reverse Engineering: Database schemas can be inverted to create UML class diagrams through code reverse engineering.
Modeling Extended Relational Database Objects: Sequences, views, indexes, functions, and stored procedures are examples of contemporary database items that can be represented in UML class diagrams for modelling extended relational database objects.
Relational Model Concepts and PostgreSQL

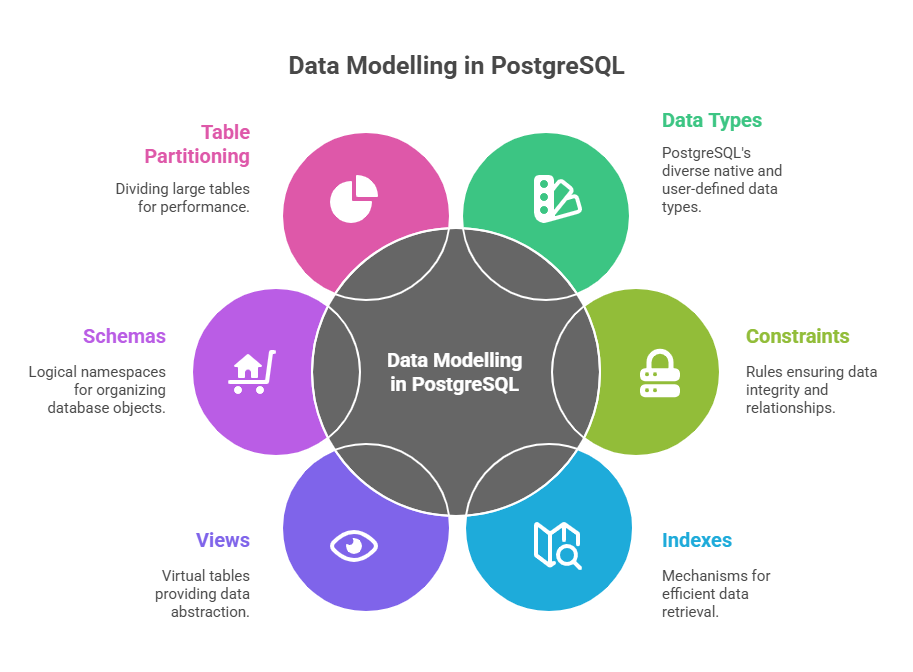

As a first-order predicate logic, the relational model views a database as a collection of relations, or tables. Every relation has attributes (columns) and tuples (rows). Among the many capabilities offered by PostgreSQL, an object-relational database management system (ORDBMS), are those that facilitate and improve data modelling:
Data Types: PostgreSQL provides a wide variety of native data types, such as text search, UUID, XML, JSON, numeric, character, date/time, boolean, geometric, network address, bit string, and more. Through CREATE TYPE (for composite or ENUM types) and CREATE DOMAIN (for types with constraints), it also allows user-defined data types. Unlike JSON, specialised JSON data formats, such as jsonb, store data in a deconstructed binary format for faster processing and indexing.
Constraints: The validity and relationships of the data are enforced via constraints. NOT NULL, UNIQUE, PRIMARY KEY, FOREIGN KEY, CHECK, and EXCLUSION are PostgreSQL features. Referential integrity between tables requires foreign keys.
Indexes: To make search operations faster. PostgreSQL is compatible with a number of index types, including as GIN, BRIN, B-tree, Hash, GiST, and SP-GiST. Indexes on expressions and partial indexes, which index a section of data, are also supported.
Views: Named queries that serve as a layer of data access, views provide abstraction and authority over data rights. To improve efficiency, materialised views can cache query results.
Schemas: Used in multi-user systems to regulate authorisation and group database objects (tables, views, functions, etc.) into logical groups.
Table Partitioning: Data is physically arranged according to grouping criteria in a technique called table partitioning, which enhances efficiency for very big tables. Descriptive, vertical, and horizontal partitioning are supported by PostgreSQL.
System Catalogs: In system catalogues like pg class and information schema, PostgreSQL stores metadata on databases, tables, columns, and other objects that are necessary for database functionality and expansion.
Code Example:
CREATE SCHEMA IF NOT EXISTS sales;
CREATE TABLE sales.sellers (
seller_id SERIAL PRIMARY KEY,
first_name VARCHAR(50) NOT NULL,
last_name VARCHAR(50) NOT NULL,
email VARCHAR(100) UNIQUE NOT NULL
);
CREATE TABLE sales.cars (
car_id SERIAL PRIMARY KEY,
make VARCHAR(50) NOT NULL,
model VARCHAR(50) NOT NULL,
year INT NOT NULL,
price NUMERIC(10,2) CHECK (price > 0),
is_sold BOOLEAN DEFAULT FALSE,
seller_id INT NOT NULL REFERENCES sales.sellers(seller_id)
);
INSERT INTO sales.sellers (first_name, last_name, email) VALUES
('John','Doe','john.doe@email.com'),
('Jane','Smith','jane.smith@email.com');
INSERT INTO sales.cars (make, model, year, price, seller_id) VALUES
('Toyota','Corolla',2020,25000,1),
('Honda','Civic',2022,28000,1),
('Ford','Mustang',2023,45000,2);
CREATE VIEW sales.cars_for_sale AS
SELECT c.make, c.model, c.year, c.price,
s.first_name AS seller_first_name,
s.last_name AS seller_last_name
FROM sales.cars c
JOIN sales.sellers s ON c.seller_id = s.seller_id
WHERE c.is_sold = FALSE;
SELECT * FROM sales.cars_for_sale;
SELECT * FROM sales.cars_for_sale WHERE seller_first_name='John' ORDER BY year DESC;Output:
Output:
CREATE SCHEMA
CREATE TABLE
CREATE TABLE
INSERT 0 2
INSERT 0 3
CREATE VIEW
make | model | year | price | seller_first_name | seller_last_name
--------+---------+------+----------+-------------------+------------------
Toyota | Corolla | 2020 | 25000.00 | John | Doe
Honda | Civic | 2022 | 28000.00 | John | Doe
Ford | Mustang | 2023 | 45000.00 | Jane | Smith
(3 rows)
make | model | year | price | seller_first_name | seller_last_name
--------+---------+------+----------+-------------------+------------------
Honda | Civic | 2022 | 28000.00 | John | Doe
Toyota | Corolla | 2020 | 25000.00 | John | Doe
(2 rows)Conclusion
Finally, PostgreSQL data modelling allows for structured and flexible database system architecture that meets complicated business requirements. Developers can ensure data integrity, consistency, and scalability with PostgreSQL’s rich native data types, user-defined types, robust constraints, indexing methods, table inheritance, partitioning, and schemas. Modelling data theoretically, intellectually, and physically improves clarity, iterative improvement, and adaptability without substantial redesigns.
ER diagrams, UML class diagrams, and graphical interfaces ease stakeholder-developer communication, whereas Foreign Data Wrappers and JSON/JSONB integrate varied data . Due to its versatility and powerful modelling features, PostgreSQL is a solid choice for developing well-organised, high-performance database structures for modern enterprise applications.
