Machine learning requires displaying high-dimensional data to capture key patterns and structures. T Distributed Stochastic Neighbor Embedding(t sne) is an effective approach. Projecting high-dimensional data onto a lower-dimensional environment is a common way to visualize it. Its ability to expose data structure makes t-SNE attractive for exploratory data analysis and understanding complex datasets.
The Problem of High-Dimensional Data
Data in many real-world applications is high-dimensional. Gene expression, image pixel, and word vector text data are examples. Unfortunately, human perception is confined to three dimensions in physical space, making it impossible to comprehend and grasp high-dimensional data.
Algorithms can model and predict high-dimensional data, but interpreting the results and understanding the data structure takes a different method. The intricacy and expanse of the feature space make it difficult to interpret or visualize correlations between data points in high-dimensional data.
The Goal of Dimensionality Reduction
High-dimensional data is simplified using dimensionality reduction while keeping its structure and relationships. Mapping data points from a higher-dimensional space to a lower-dimensional space should preserve significant qualities like clusters and patterns. Effective dimension reduction is necessary for:
Visualization: Allowing two- or three-dimensional visualization of high-dimensional data.
Noise Reduction: Eliminating unimportant features reduces noise.
Computational Efficiency: Reducing data complexity speeds up machine learning operations.
- One excellent tool for visualizing data clusters or patterns is t-SNE.
Introduction to T Distributed Stochastic Neighbor Embedding(t sne)
Laurens van der Maaten and Geoffrey Hinton invented t-SNE in 2008. In contrast to linear techniques such as PCA, t-SNE can show complex, non-linear connections by embedding high-dimensional data in a lower-dimensional environment.
The essential aspect of t-SNE is data local structure preservation. T-SNE aims to position two points near together in the lower-dimensional space if they are close in the high-dimensional space. This makes t-SNE suitable for complex data structures like clusters where local interactions matter.
How does T-SNE work
We’ll ignore mathematical formulas, although understanding T Distributed Stochastic Neighbor Embedding(t sne) high-level stages is helpful:
- Pairwise Similarities: t-SNE analyses each high-dimensional pair of data points for similarity. The probability of one point being neighbor to another is calculated using a probabilistic distribution.
- High-Dimensional Representation: The data points are initially assigned a place in a high-dimensional space, and t-SNE assigns probabilities based on their proximity. Essentially, points close together in the original space are likely neighbors.
- Low-Dimensional Embedding: Using low-dimensional embedding, t-SNE maps the data into 2D or 3D space. During this procedure, the method minimizes a loss function that compares pairwise similarities in the high-dimensional space to the lower-dimensional space. Neighbors in high-dimensional space should be neighbors in low-dimensional space.
- Optimization: To minimize the loss function, t-SNE iteratively adjusts data point placements in lower-dimensional space to best reflect their relationships.

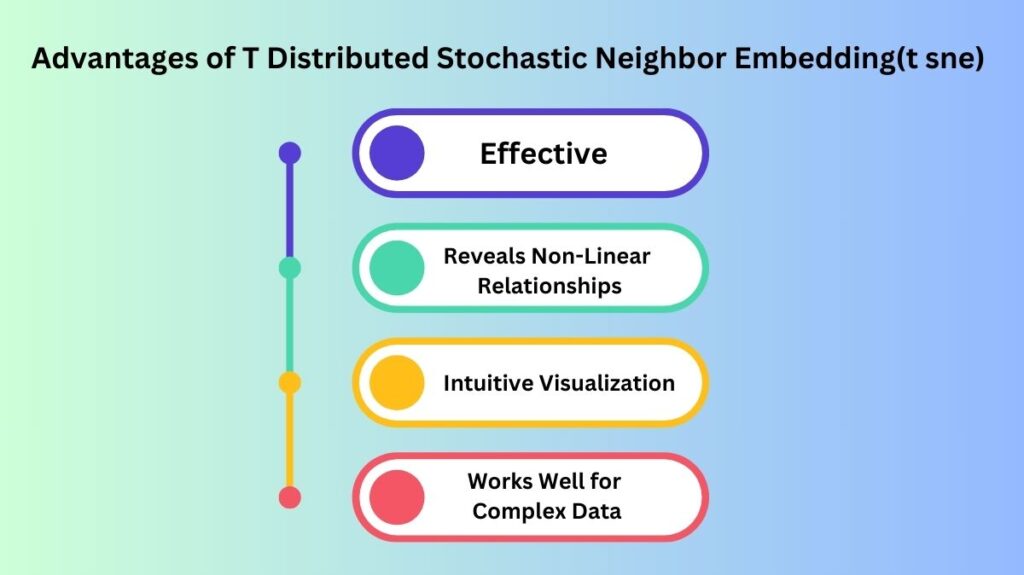

Advantages of T Distributed Stochastic Neighbor Embedding(t sne)
T Distributed Stochastic Neighbor Embedding(t sne) is a popular data visualization method for complex datasets for various reasons:
- Effective at Preserving Local Structure: T-SNE is good at preserving local structure in data. If points are close in high-dimensional space, they will likely remain close in low-dimensional space, which helps find clusters or patterns.
- Reveals Non-Linear Relationships: PCA can only capture linear associations, however t-SNE can reveal non-linear relationships. The versatility of t-SNE allows it to find hidden patterns that linear approaches cannot.
- Intuitive Visualization: T-SNE data are easy to visualize, especially in 2D and 3D. It is essential for exploratory analysis and data structure discoveries.
- Works Well for Complex Data: t-SNE works well with high-dimensional picture, text, and biological data.
Disadvantages of T Distributed Stochastic Neighbor Embedding(t sne)
T Distributed Stochastic Neighbor Embedding(t sne) has several benefits but also some drawbacks:
- Computational Complexity: For large datasets, t-SNE is computationally expensive. As data points expand, pairwise distance calculations might down the optimization process. T-SNE is less scalable to large datasets than other dimensionality reduction methods.
- Difficulty in Interpreting Global Structure: t-SNE preserves local structure well but not global structure. For instance, cluster distances in lower-dimensional space may not match their original relationships. This suggests that t-SNE is better at finding local patterns or clusters than global data linkages.
- Perplexity Parameter: The “perplexity” hyperparameter impacts how t-SNE defines neighborhoods. Experimentally selecting the proper perplexity can yield good results. Setting perplexity too high or low might negatively impact data visualizations by balancing local and global factors.
- Reproducibility Issues: Since t-SNE is stochastic, its initialization is random, hence outcomes can vary. This lack of determinism might make replicating results across runs or datasets difficult.
Applications of T Distributed Stochastic Neighbor Embedding(t sne)
Especially in fields with complicated, high-dimensional data, t-SNE has many uses. Notable uses include:
- Image Analysis: Deep learning and convolutional neural networks employ t-SNE to visualize picture associations. It shows feature representation similarities and differences between photos.
- Genomics and Biology: t-SNE visualizes gene expression data at each gene as a feature to find clusters of genes with comparable expression patterns. Exploring single-cell RNA sequencing data is another purpose.
- Natural Language Processing (NLP): t-SNE visualizes high-dimensional vector representations of words or documents. Researchers can better grasp synonyms and word clusters by reducing these embeddings to two or three dimensions.
- Clustering: t-SNE is used to show K-means output. Projecting clustered data onto a lower-dimensional space helps practitioners evaluate clustering quality.
Alternatives to T Distributed Stochastic Neighbor Embedding(t sne)
Although t-SNE is powerful for dimensionality reduction, other methods may be better:
- Principal Component Analysis (PCA): PCA projects data along orthogonal axes to capture maximum variance. Computationally efficient for linear data, it may not perform as well as t-SNE for non-linear connections.
- Uniform Manifold Approximation and Projection (UMAP): UMAP is a modern approach that visualizes high-dimensional data like t-SNE. It is faster and scalable than t-SNE while keeping local and global structure.
- Isomap: A non-linear dimensionality reduction method called isomap uses multi-dimensional scaling (MDS) and geodesic distances to capture non-linear features.
In Conclusion
The powerful technique T Distributed Stochastic Neighbor Embedding(t sne) projects high-dimensional data onto a lower-dimensional space while preserving local associations between data points. This makes it useful in image analysis, genetics, and natural language processing since it finds hidden patterns and structures. The method’s computational cost, hyperparameter sensitivity, and global structure preservation issues must be considered. T Distributed Stochastic Neighbor Embedding(t sne) intuitive and insightful representations of complex data make it a popular dimensionality reduction method despite these challenges.
