Function Abstraction
Functions are essential tools in Python programming that help organise, read, and reuse code. They enable you to organise logical statements that address a certain issue into code blocks with names that carry out particular operations. Because of this, programs are shorter and simpler to update because the same code isn’t repeated repeatedly.
Complex programming problems benefit from being broken down into simpler parts. This strategy is often called “Divide and Conquer”. You break down the main issue into smaller issues rather than attempting to apply the complete solution all at once. After then, these subproblems can be further subdivided until they are straightforward enough to resolve.
By enabling you to divide your code into these smaller components, each of which is in charge of a distinct subtask, functions in Python give you the means to put this method into practice. Functional Decomposition is the process of dissecting a software or system into its functions and sub functions.
Stepwise refinement is the iterative process of decomposing a complex programming assignment or technique into smaller, more manageable parts. Until the entire algorithm can be reasonably readily translated into program code, it entails taking each step and breaking it down into a number of simpler steps. Functions are used to accomplish this, which is directly in line with the divide and conquer method.
You can make your code easier to write and comprehend by structuring it by writing functions for each refined step or subproblem. Operation Stepwise refinement and functional decomposition are closely related to the fundamental idea of function abstraction. Consider a function as a “black box” to visualize this. The client code that invokes the function Abstraction cannot see the information inside the box.
This idea is sometimes referred to as encapsulation or information concealing. Programmers can concentrate on the program’s higher-level logic (the “what”) without being mired in the specifics of each subtask (the “how”) with function abstraction. As long as the function’s interface (name, parameters, return type) is unchanged, the client code is unaffected if the function abstraction implementation needs to be changed.
You may come across tasks that are not yet fully implemented when creating a program using a top-down technique, in which you begin with the main function and gradually create the Functions Abstraction for the subproblems. Stubs can be used in these situations. A function that has been simplified but left unfinished is called a stub. Even though certain components are not yet complete, it serves as a placeholder that lets you develop and test the general logic and structure of your program’s framework. Stubs usually just include enough code to enable the program to work properly, possibly providing a default value or publishing a notice that the function is a stub.

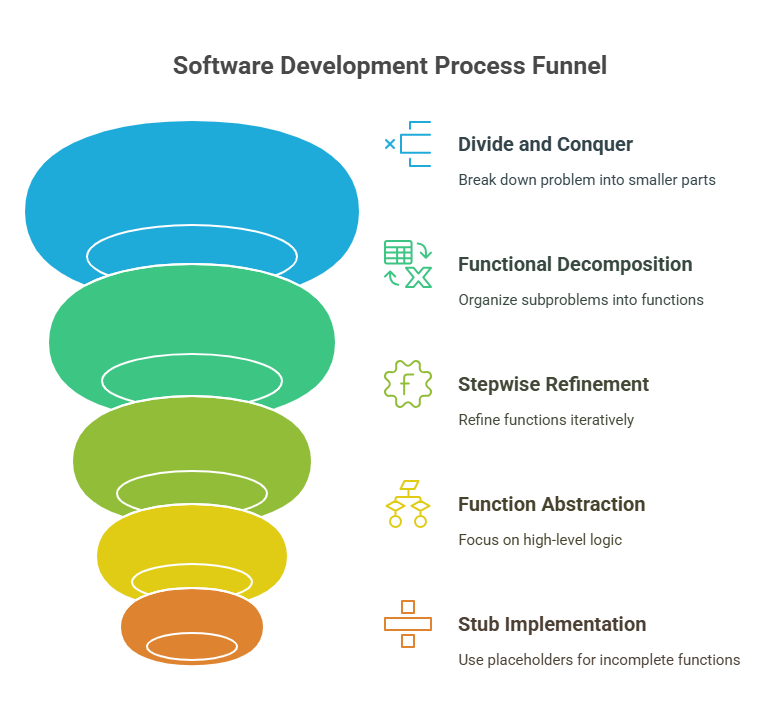

Using functions, stepwise refinement, divide and conquer, function abstraction, and stubs provides numerous benefits in software development:
Easier to Write and Understand: Programming is made simpler and code is easier to read and understand when complicated problems are divided into smaller, cohesive functions. The functions abstraction of each program component can be succinctly described by their names.
Increased Reusability: Functions can be called again or reused in other programs.
Easier to Debug and Test: Separating a program into functions Abstraction with specific tasks makes debugging and testing easier. This improves the efficiency of the debugging process overall and aids in error isolation. Here, stubs are very helpful for verifying the program’s flow before every component is finished.
Improved Maintainability: Modifying and maintaining code that is structured into modular functions is considerably simpler. Modifications to one function abstraction implementation (while maintaining the same interface) shouldn’t have an impact on other program components that utilise it.
This is a basic Python example that illustrates these ideas. We’ll write a program that uses a stub and incremental refining to parse a list of numbers.
Example:
# Stepwise Refinement / Divide and Conquer Algorithm:
# 1. Get a list of numbers from the user.
# 2. Calculate the average of these numbers.
# 3. Check if the average meets a certain passing criterion
# 4. Display the results to the user.
# Functional Decomposition:
# Translate the algorithm steps into functions.
def get numbers from input():
Function to get numbers from user input.
Corresponds to Step 1 of the algorithm.
print("Please enter numbers, one per line. Type 'done' when finished.")
numbers = []
while True:
user input = input("> ")
if user input lower() == 'done':
break
try:
# Function abstraction: Using float() without knowing its internal details
number = float(user input)
numbers append(number)
except Value Error:
print("Invalid input. Please enter a valid number or 'done'.")
return numbers
def calculate average(numbers):
Function to calculate the average of a list of numbers.
Corresponds to Step 2 of the algorithm.
This function is reusable for any list of numbers
if not numbers:
print("No numbers entered, average is 0.")
return 0.0
# Function abstraction: Using sum() and len() built-in functions
return sum(numbers) / len(numbers)
# This is a STUB function
# It's a placeholder for the future implementation of the passing check logic (Step 3).
def meets passing criterion(average):
STUB: Checks if the calculated average meets the passing criterion.
TODO: Replace this stub with the actual logic once requirements are defined.
For now, it just prints a message and returns a default result.
print("\n(STUB: Running passing criterion check...)")
# Simple placeholder logic: let's assume passing is > 70 for now
stub threshold = 70.0
return average > stub threshold
def display results(average, meets criterion):
Function to display the final results.
Corresponds to Step 4 of the algorithm.
print("\n Results")
print(f" Calculated Average: {average 2f}")
if meets criterion:
print("Criterion met: The average meets the passing requirements.")
else:
print("Criterion not met: The average does not meet the passing requirements.")
print
def main():
Main function orchestrating the program flow.
This function implements the high-level algorithm using the functions defined.
It focuses on 'what' needs to be done (call functions) not 'how' they work (abstraction)
print(" Student Score Processor ")
# Step 1: Get numbers (handled by get numbers from input function)
scores = get numbers from input()
# Step 2: Calculate average (handled by calculate average function)
average score = calculate average(scores)
# Step 3: Check passing criterion (handled by meets passing criterion STUB function)
is passing = meets passing criterion(average score)
# Step 4: Display results (handled by display results function)
display results(average score, is passing)
print("Program Finished ")
# This line ensures main() runs when the script is executed directly.
if name == "main":
# Starting the program execution with the main function.
# The main function delegates work to other functions
main()The main function abstraction in this example describes the general procedure that adheres to the stepwise refinement algorithm. A distinct function (get numbers from input, calculate average, meets passing criterion, display results) is assigned to each important stage. Functional decomposition is demonstrated here.
The main function uses function abstraction to call these functions; it doesn’t have to understand the finer points of calculate average or how get numbers from input handles mistakes; it just has faith that they carry out their intended purpose. Before the precise logic for obtaining a “passing” score is finalized, the meets passing criterion function abstraction is constructed as a stub, allowing the overall program structure and flow (main, getting input, calculating average, displaying output) to be developed and tested.
This demonstrates how stubs make it easier to create and test the program structure top down. The code becomes more structured, comprehensible, and easier to deal with during development and future maintenance by decomposing the problem and utilizing functions and stubs.
