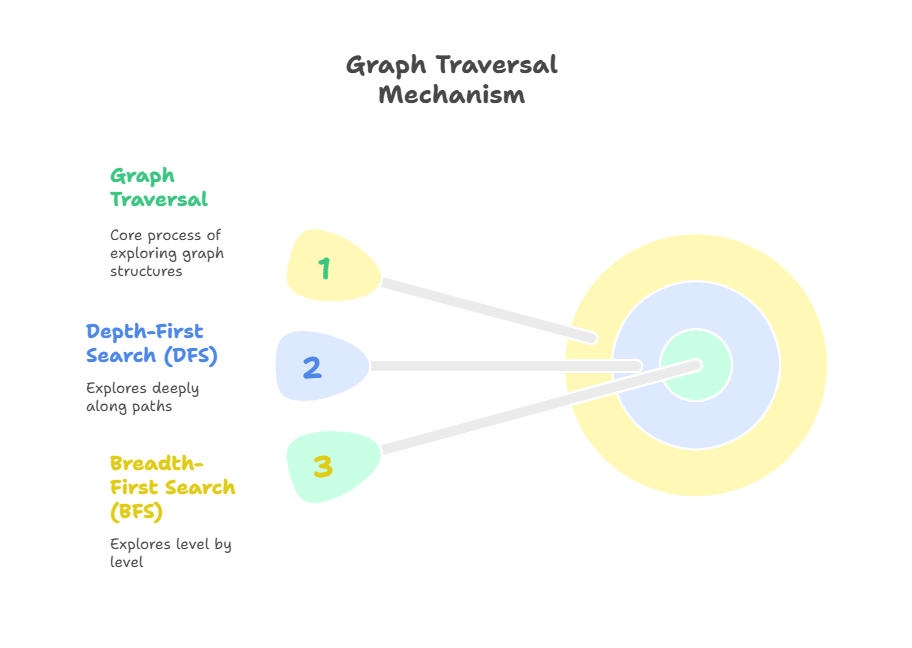

Graph Traversal Mechanism
A methodical process for investigating a graph by looking at each vertex and edge is called graph traversal. This procedure is essential for addressing basic queries about graphs, especially those pertaining to reachability figuring out how to follow paths between vertices. In time proportional to the number of vertices and edges, an effective traversal visits each one.DFS and BFS are the main graph traversal methods.
Depth-First Search (DFS)
The graph traversal approach known as Depth-First Search (DFS) is comparable to using a string and a can of paint to navigate a labyrinth. A particular vertex is where you begin, designate it as “visited,” and make it your “current” vertex. You investigate an incident edge from this current vertex. Move to the unvisited vertex, mark it as visited, and make it the current vertex if the edge leads there. Edges that lead to visited vertices are ignored.
You go back along the path that led you to a previously visited vertex with undiscovered edges when you hit a “dead end” a vertex where all incident edges travel to vertices that have already been visited. This process continues until you reach the initial vertex and analyse all affected edges.
Steps in Depth-First Search (DFS)
The pseudo-code for a recursive DFS traverse assumes u has been visited:
Mark the starting vertex: Select s, the beginning vertex. Mark came to visit. The beginning vertex u is presumed to be marked as detected before the function call in the recursive pseudo-code.
Initialize a collection for discovered vertices: Each vertex should be mapped to the edge that was used to discover it using a dictionary (such as found). Its value in discovered would be None for the first vertex, s.
Explore incident edges: Iterate through all of the current vertex u’s outgoing edges using the formula e = (u, v). Explore incident edges in graphs by looking at all the connections immediately associated to a vertex. Deep-First Search (DFS) and Breadth-First Search (BFS) graph traversal algorithms depend on this principle.
Check for unvisited neighbors: If the neighbour vertex v is not in the discovered dictionary, meaning it has not been visited:
- Add v to the found dictionary with e as its discovery edge to mark v as visited.
- To delve farther from v, recursively invoke the DFS algorithm on v (i.e., DFS(g, v, found)).
Backtrack: Depth-first search uses “backtracking” in graph traversal algorithms. If a “dead end” occurs where all edges from the current vertex lead to already visited vertices, the program “rolls its string back up,” backtracking along the path it took to reach a previously visited vertex. Starting from that point, the traversal can investigate further undiscovered edges.
Termination: The point at which a recursive algorithm stops is called termination. A recursive procedure defined in terms of itself must have one or more “base cases”. These base cases stop the recursion and ensure the algorithm approaches a conclusion with each call.
Conceptual Python Code Example for DFS A notional Python implementation of DFS for a graph g, starting vertex u, and a found dictionary would resemble this, based on the pseudo-code:
Example:
def dfs(graph, start, visited=None):
if visited is None:
visited = set()
visited.add(start)
print(start, end=" ")
for neighbor in graph[start]:
if neighbor not in visited:
dfs(graph, neighbor, visited)
# Graph represented as an adjacency list
graph = {
'A': ['B', 'C'],
'B': ['A', 'D', 'E'],
'C': ['A', 'F'],
'D': ['B'],
'E': ['B', 'F'],
'F': ['C', 'E']
}
print("DFS Traversal:")
dfs(graph, 'A')Output:
DFS Traversal:
A B D E F C ( Based on the pseudo-code in the given text, this is a conceptual example. The incident_edges() and opposite() methods would be provided by the actual implementations of the Graph, Vertex, and Edge classes.)
Properties and Running Time of DFS: DFS traverses graphs efficiently. In the case of an undirected graph, the discovery edges create a spanning tree of the linked component of the initial vertex, and all vertices in that component are visited. In a directed graph, the DFS tree includes directed paths from the start to every reachable vertex, and DFS visits every vertex that can be reached from the starting vertex.
DFS divides edges into two categories “nontree edges” that go to a previously visited vertex and “discovery edges” (also known as “tree edges”) that lead to a new, unvisited vertex. All nontree edges in undirected graphs are “back edges” that link a vertex to a DFS tree ancestor. “Back edges,” “forward edges” (to a descendant), and “cross edges” (to a vertex that is neither an ancestor nor a descendant) are examples of nontree edges in directed graphs. A cycle in the graph is shown by the presence of a rear edge.
When n is the number of vertices and m is the number of edges, the running time of DFS is typically O(n + m). Adjacency list structures meet the requirements for this efficiency, which include O(deg(v)) time for iterating incident edges and O(1) time for marking vertices as explored.
Breadth-First Search (BFS)
In order to examine a graph, Breadth-First Search (BFS) investigates each point at a specific depth before going on to the next deeper level. It’s like sending out numerous explorers in different directions to progress through the graph together. BFS uses a queue (FIFO) to manage node access. Breadth-First Search (BFS) is a fundamental approach for searching graphs and trees. It explores the structure “breadthwise” by visiting all nodes at one depth level before moving on to the next. The procedure begins node (Level 0), then examines its direct neighbours (Level 1), then all unvisited neighbours of Level 1 nodes (Level 2), and so on, in rounds until all reachable nodes are visited and marked.
Steps in Breadth-First Search (BFS)
Initialize Queue and Visited List: Queues and visited lists manage traversal in algorithms like Breadth-First Search (BFS). At the start of the algorithm, the First-In, First-Out (FIFO) queue contains the graph or tree’s starting vertex or root node. This queue holds all “known” positions or nodes that have been detected but not processed.
Process Queue: Even though the queue isn’t empty.
- Add the queue’s front item (current vertex u) to a list of nodes that have been visited.
- List the nodes next to u.
- Unvisited queue neighbours: Mark surrounding nodes v as visited and move them to the back of the queue if not already.
Repeat: The term “Repeat:” is not specified as a programming construct or keyword, yet repetition is crucial to algorithms and programming and is widely addressed through loops and recursion. A block of code or collection of statements can be repeated. Python uses for loops and while loops for this.
Properties and Running Time of BFS: BFS has a number of noteworthy qualities.
- It travels to every vertex that can be reached from the initial vertex.
- For any level i vertex v, the BFS tree path s to v contains i edges. This is the graph’s shortest edge-count path from s to v. Because of this, BFS can find unweighted graph shortest paths.
- In an undirected graph BFS, every nontree edge is a cross edge.
Assuming an adjacency list representation, BFS’s running time for a graph with n vertices and m edges is likewise O(n + m).
Example:
from collections import deque
def bfs(graph, start):
visited = set()
queue = deque([start])
visited.add(start)
while queue:
node = queue.popleft()
print(node, end=" ")
for neighbor in graph[node]:
if neighbor not in visited:
visited.add(neighbor)
queue.append(neighbor)
# Graph represented as an adjacency list
graph = {
'A': ['B', 'C'],
'B': ['A', 'D', 'E'],
'C': ['A', 'F'],
'D': ['B'],
'E': ['B', 'F'],
'F': ['C', 'E']
}
print("\nBFS Traversal:")
bfs(graph, 'A')Output:
BFS Traversal:
A B C D E F Comparison of DFS and BFS
Both BFS and DFS are effective in locating pathways and reachable vertices. But BFS ensures that pathways that are found use as few edges as possible. Both can detect related components, evaluate connectivity, or locate cycles in undirected graphs. DFS frequently performs better on directed graphs for tasks like locating directed cycles or locating components with a high degree of connectivity.
