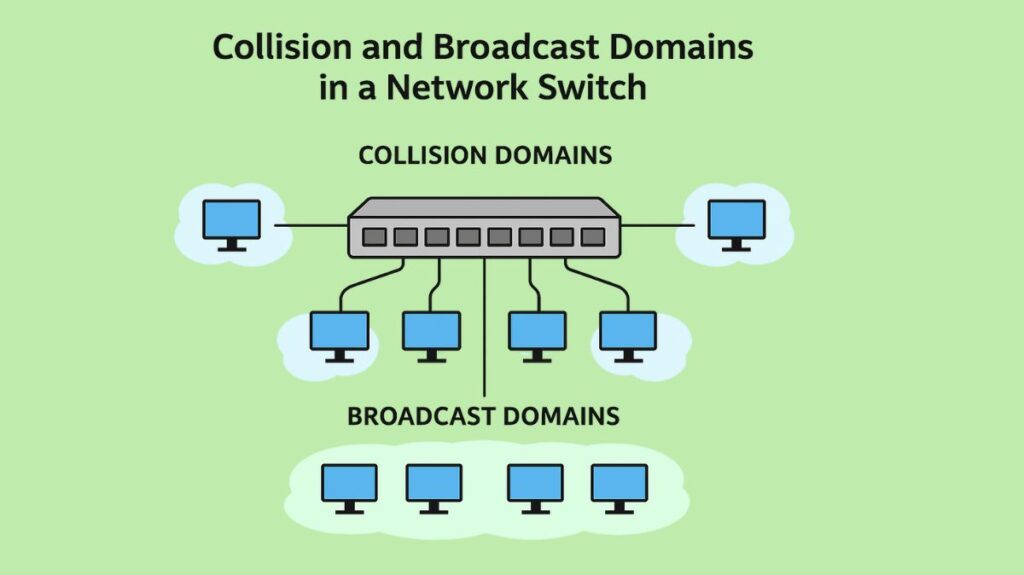

Collision Domain and Broadcast Domain
Collision domains and broadcast domains are key ideas in computer networking that help explain how network traffic moves and is controlled. They explain several facets of network performance and segmentation.

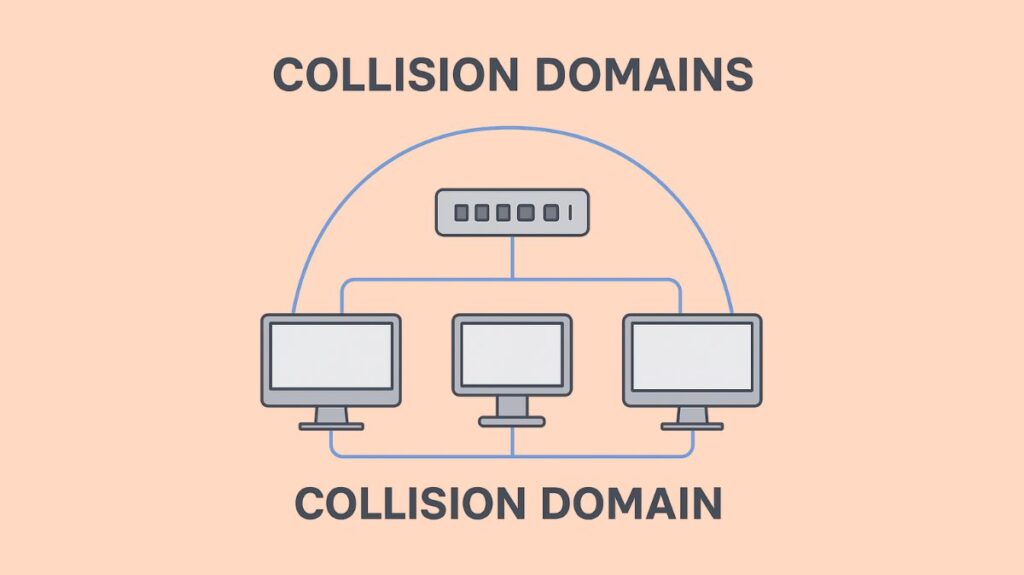

Collision Domains
A network segment known as a collision domain is one in which a frame delivered by one device may collide with a frame sent by another device on the same segment. Only one device can send data at a time in such a setting. A collision happens when several devices try to send messages at once, destroying the frames and necessitating retransmission. Usually, this occurs in half-duplex mode. Network performance is deteriorated by collisions, which result in delays and decreased efficiency. The collision domain is defined by the OSI model’s Data Link Layer (Layer 2).
You can also read What is Frame Forwarding and Frame Forwarding Methods
How Network Devices Affect Collision Domains
Hubs: A hub is a Layer 1 device that merely regenerates and repeats any incoming electrical signal out all other ports, functioning as a multi-port repeater. Hubs do not break or segment a collision domain; instead, they group all connected devices into a single, sizable collision domain.
Switches: Switches are devices that separate collision domains. A switch’s ports are all in separate collision domains by default; this is called microsegmentation. This greatly expands the available bandwidth by enabling simultaneous transmissions between devices on various ports without conflicts, particularly when operating in full-duplex mode.
Routers: Layer 3 devices known as routers are also responsible for separating collision domains. A distinct collision domain is represented by each LAN interface on a router.
Bridges: By storing Ethernet frames in memory and deciding how to forward them, bridges divide a Local Area Network into several collision domains.
Repeaters: Like hubs, repeaters extend collision domains rather than breaking them.
Wireless Access Points (APs): Instead of dividing a collision domain, wireless access points (APs) expand it.
Although real collisions are uncommon in contemporary LANs, when switches and routers mostly function in full-duplex, the idea is still essential for troubleshooting.
Advantages of Collision Domains (when minimized)
High Network Performance: Data transmission is enhanced, and packet loss is decreased when collisions are reduced.
Effective Use of Network Resources: Better bandwidth utilization results from fewer collisions.
Better Network Security: Unauthorized access and network attacks are less likely when there is less congestion.
Improved Troubleshooting Skills: Network troubleshooting skills are improved by an understanding of collision domains.
Disadvantages of Collision Domains (when large)
Limited Scalability: As the number of devices in a network grows, more collisions and performance deterioration occur.
Complex Network Management: Complex network management calls for protocols that might be challenging to set up, such as Carrier Sense Multiple Access with Collision Detection (CSMA/CD).
Minimizing Collision Domains
Use Switches and Full Duplex: Employing switches with full duplex eliminates collision zones for nodes that engage in full duplex negotiation.
Add Routers: In the past, routers were used to divide networks to reduce the likelihood of collisions.
Avoid Channel Saturation in Wireless: In wireless networks, collision domains are reduced by making sure there are enough access points on non-overlapping channels.

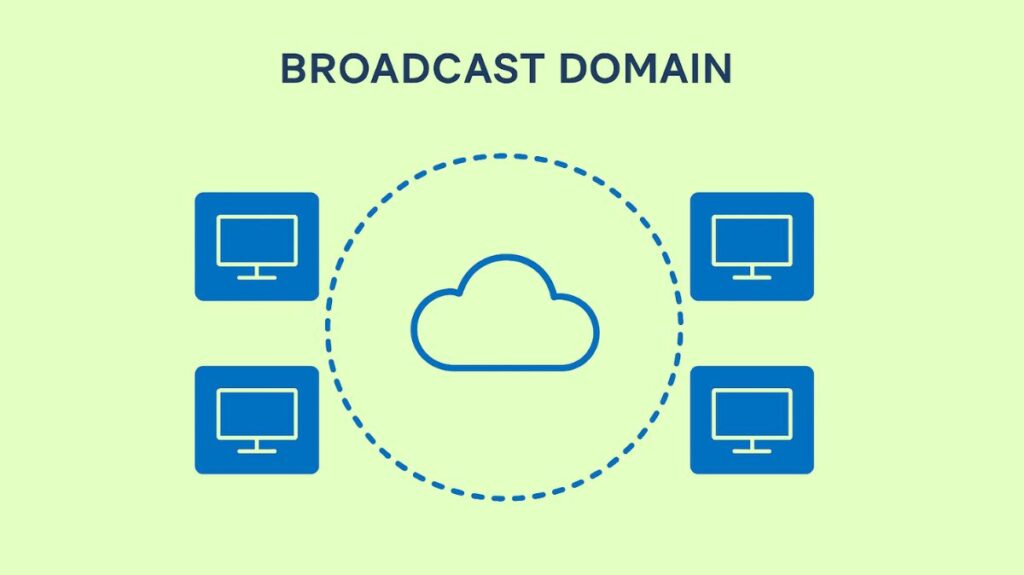

Broadcast Domains
The collection of all networked devices that will receive broadcast frames coming from any device in that collection is known as a broadcast domain. Every device in its broadcast domain must receive and process a broadcast message sent by a device (such as an ARP request or a DHCP Discover packet), which uses CPU cycles. When the precise endpoint is uncertain, discovery services frequently use broadcasts.
You can also read Understanding Switching Logic: The Brain Of A Network Switch
How Network Devices Affect Broadcast Domains
Hubs: Hubs forward broadcast frames out all ports except the incoming one, keeping all linked devices within a single broadcast domain.
Switches: By default, a switch forwards broadcast frames out all ports except the one on which they were received, assuming that all of its interfaces are in the same broadcast domain. Broadcast domains are not broken by switches alone.
Routers: The key devices that divide broadcast domains are routers. By refusing to transfer Layer 2 broadcast frames to other networks, each router LAN interface establishes a distinct broadcast domain. Through a router, a broadcast message from one network will never get to another.
Virtual LANs (VLANs): One essential tool for establishing smaller broadcast domains inside a single physical switch is a virtual local area network, or VLAN. They guarantee that broadcast frames are only switched between ports that are part of the same VLAN by logically grouping network users and resources.
Bridges: Bridges maintain a bridged environment as a single large broadcast domain by forwarding broadcast packets to all segments except the originating one, rather than dividing broadcast domains.
Advantages of Broadcast Domains (when managed)
Efficient Network Communication: Effective network communication makes it possible for several devices to receive the same message at once, which is helpful for discovery.
Simplified Network Management: By making it easier for administrators to control devices and rules, this feature can make management simpler.
Improved Collaboration: Makes it possible for network users to communicate in real time.
Necessary Protocols: Broadcasts are used by a number of crucial networking protocols, including ARP, DHCP, STP, and OSPF.
Disadvantages of Broadcast Domains (when large)
Increased Network Congestion: Excessive broadcast traffic from large broadcast domains, particularly in larger networks, can affect network performance and result in packet loss. Broadcast storms may result from this, overtaxing network capacity.
Reduced Network Security: Unauthorized access and network attacks may become more likely as broadcast traffic increases.
Scalability Issues: As the number of devices rises, broadcast domains with broad definitions may experience scalability problems.
Misconfiguration Risks: Inadequate VLAN or routing configurations may inadvertently broaden broadcast domains, negating their intended use.
Managing Broadcast Domains
Routing: In order to divide broadcast domains, routers are essential.
VLANs: Networks are frequently logically divided into smaller broadcast domains using VLANs.
DHCP Helpers: By rerouting DHCP queries to the server instead of forwarding them to every port, switches can use DHCP helpers.
Multicast: By enabling clients to subscribe to certain services, properly integrated multicast can reduce noisy broadcasts.
Broadcast Suppression: Although it occasionally drops essential transmissions, this hardware option enables establishing a threshold for broadcast traffic on a port and prohibiting traffic that exceeds it.
Relationship between Collision and Broadcast Domains
While a collision domain cannot contain more than one broadcast domain, a single broadcast domain can contain numerous collision domains. Broadcasts are necessary for many network protocols, even though the goal of contemporary network architecture is to completely eradicate collisions. In order to maximize efficiency without removing essential broadcast communication, network design entails minimizing collision domains and controlling the size and number of broadcast domains.
