CISCO IFS
Users are able to create, navigate, and manipulate folders and files on Cisco IOS (Internetwork Operating System) devices with the Cisco IOS File System (IFS). It works similarly to the file system of a typical operating system, offering a structured way to store different types of data, such as configuration files and the Cisco IOS software image.

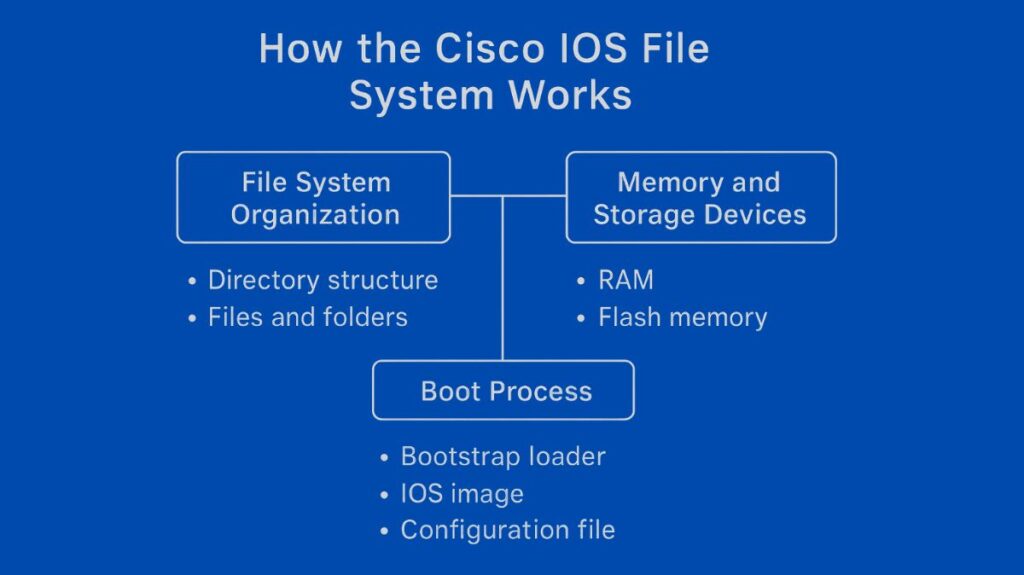

How CISCO IFS Works
The CISCO IFS offers a single interface for file management across many network protocols and storage locations.
File System Organization:
- File systems are made by all operating systems, including Cisco IOS, to store files. These systems organize files into directories, structures, and filenames with related rules.
- IOS generates a basic file system and gives each router’s physical memory device a name.
- Whether files are on a remote file server or the local Cisco routers, the new file system interface uses URLs to indicate their location. In order to locate files or directories, administrators can now utilise URLs directly in commands.
Memory and Storage Devices:
- Flash Memory: Flash memory is mostly used by Cisco routers to store the Cisco IOS image permanently. Flash memory is dependable since it is re-writable, non-volatile, and devoid of moving parts. USB flash drives or detachable flash memory cards, like CompactFlash, are supported by certain routers.
- NVRAM (Nonvolatile RAM): This memory stores the startup configuration file (
startup-config), which is the initial configuration loaded when the device powers on. NVRAM is not erased when the router or switch is reloaded. - RAM (Random Access Memory): This is the working memory where the Cisco IOS software is loaded and expanded into during the boot process, and where the running configuration file (
running-config) resides. Therunning-configdynamically changes as commands are entered in configuration mode.
Boot Process:
- A Cisco device runs a Power-On Self-Test (POST) from ROM when it turns on in order to verify hardware functionality.
- From flash memory by default, the Cisco IOS software is then found and loaded by the bootstrap program (also known as boothelper) in ROM.
- After the IOS loads, it searches for a valid startup configuration file in NVRAM. If found, this
startup-configis copied into RAM and becomes therunning-config. If nostartup-configis found, the device may attempt to load a configuration from a TFTP server or enter setup mode. - The router’s boot process, including where to locate the IOS image and whether to load the initial configuration, is controlled by the configuration register in the NVRAM.
CISCO IFS History
William Yeager created the Cisco Internetwork Operating System (IOS) software for the first time in 1986. Cisco created the Cisco IOS Integrated File System (IFS) in order to standardize file administration. IFS offers a single mechanism for managing all file systems, including Flash memory, network file systems (TFTP, RCP, and FTP), and reading and writing data from NVRAM or the running configuration, when used with Cisco IOS Software Release 12.0 and later. IOS XE, a modernized version of IOS with a Linux-based multitasking design that seeks to increase uptime and facilitate upgrades without requiring reboots, was introduced by Cisco in the 2000s. The familiar CLI and commands of traditional IOS are still substantially present in IOS XE, though.
Also Read About Cisco Discovery Protocol, How CDP Works, And Benefits of CDP
Why the CISCO IFS is Important (Advantages)
For network operations, the IFS and related file management are essential because
Centralized Management: The number and revision level of Cisco IOS images and configuration files can be better managed as a network expands by keeping them on a central TFTP server.
Universal User Interface: With the use of IFS’s platform-neutral file system user interface, network engineers can utilise the same syntax for commands on various Cisco routers and switches.
Streamlined Operations: Finding and transferring data between distant servers or other storage sites is made easier by the use of URLs in commands.
Enhanced Reliability: Because flash memory has no moving parts, it is less likely to fail than hard disc drives when used for IOS pictures.
Efficient Maintenance and Upgrades: In order to perform IOS updates and to backup and restore IOS images and configuration files, IFS commands are necessary.
Security and Recovery: For the purpose of recovering passwords and protecting the device from intrusions, the ability to handle configuration files and iOS images is essential. A secure working copy of the IOS image and startup configuration files (primary bootset) is made available by the Cisco Resilient Configuration feature, which prevents remote users from deleting them.
Integrity Verification: To verify that the downloaded file has not been corrupted, tools such as MD5 verification can be used to examine the integrity of Cisco IOS images.
Types of CISCO IFS
The show file systems command reveals a list of file systems, which can be categorised by their type:
Disk: Represents internal flash memory (e.g., flash0:, flash1:).
Usbflash: Represents USB flash drives (e.g., usbflash0:, usbflash1:).
NVRAM: A special type for nonvolatile RAM, which stores the startup-config file (e.g., nvram:).
Network: Represents external file systems on servers accessible via network protocols (e.g., tftp:, ftp:, scp:, http:, https:, rcp:, pram:).
Opaque: Represents logical internal file systems for various internal functions and commands (e.g., archive:, system:, tmpsys:, null:, syslog:, xmodem:, ymodem:, tar:, cns:).
Some common commands refer to these file systems indirectly:
show running-configrefers tosystem:running-config.show startup-configrefers tonvram:startup-config.show flashrefers to the default flash IFS (usuallyflash0:).
Also Read About Network Device Monitoring: Control Plane & Protocol Insights
CISCO IFS Disadvantages
Partial Command Support: Although the pertinent CISCO IFS commands for a given file system are fully supported, not all file systems and platforms implement all of the commands.
TFTP Limitations for Large Files: IOS transfers are done via TFTP, but this protocol is unreliable and only effectively transfers tiny files. These days, IOS photos can be 104 MB or more, which makes TFTP less suitable for huge image transfers. FTP and Secure Copy Protocol (SCP) are frequently chosen for more dependable, larger transfers.
Boot Process Sensitivity: Incorrect boot system commands or a corrupted flash image can prevent a router from booting properly, potentially requiring recovery through ROMmon mode.
CISCO IFS Applications
Cisco networking device management relies heavily on the CISCO IFS:
Cisco IOS Upgrades and Recovery:
- Obtaining and Placing Images: Usually, IOS images are obtained from Cisco.com (either via HTTP or FTP) and stored on a USB flash drive or a network TFTP or FTP server.
- Copying Images: The copy command is used to move IOS images (.bin files) from a USB flash drive, TFTP server, or FTP server into the device’s flash memory. Secure transfers can also be made using SCP.
- Verifying Integrity: After copying, the verify /md5 command can be used to confirm the IOS image’s integrity.
- Booting New IOS: The router must be reloaded, the configuration saved, and a boot system command added to refer to the new file in order to use a fresh IOS image. Because the IOS is expanded into RAM at boot, the new IOS must be reloaded in order to function.
- ROMmon Recovery: If flash memory is corrupted or erased, the IOS can be restored from ROMmon mode using commands like
copy tftp flash. Xmodem protocol can also be used to upload an IOS file via the console port when no network connectivity is available.
Configuration Management:
- Backup and Restore: The running-config is often backed up to startup-config in NVRAM using the copy command (copy run start). It is also possible to backup and restore configurations via TFTP, FTP, or SCP servers.
- Archiving: Configurations can be automatically backed up to other servers on a regular basis using the archive file system.
Password Recovery: In order to retrieve lost device passwords, the file system and configuration register are essential.
Network Documentation and Inventory: Important information for network management and troubleshooting can be obtained by inspecting the contents and available space of file systems using commands like show file systems, dir, and show flash.
File Viewing: Using the more command, administrators can see what’s inside text files, including configuration files.
Directory Management: Commands like cd (change directory), pwd (print working directory), mkdir (make directory), and rmdir (remove directory) are used to navigate and manage directories within the IFS.
Verification of IOS Image: The show version command displays information about the currently running IOS image, including its source (e.g., flash), and the configuration register setting, which is vital for verifying the boot process.
