Keystone Jack

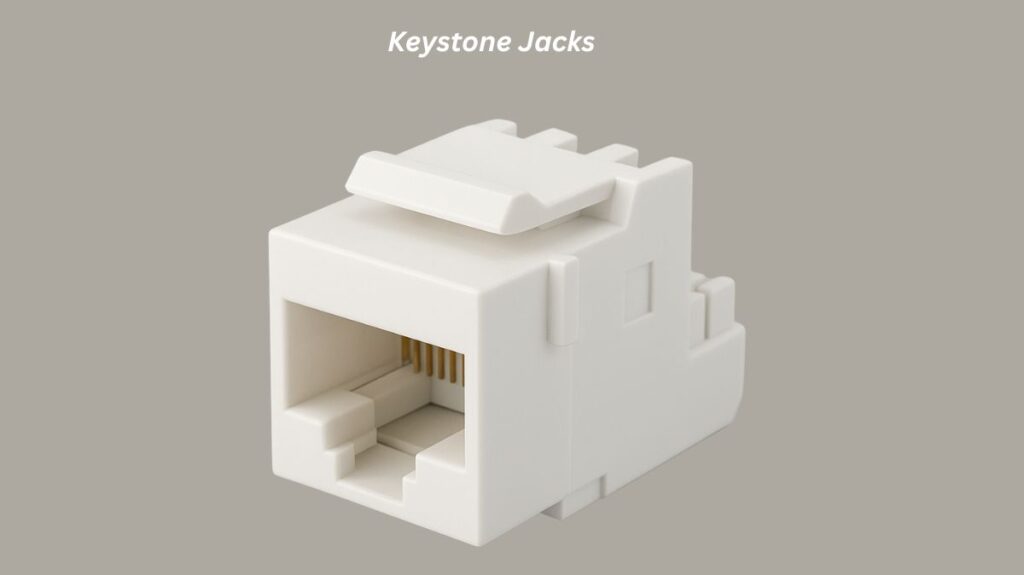

Modular female connectors called Keystone Jacks are utilized in networking for data, voice, audio, and video. By fitting into conventional apertures in patch panels, surface mount boxes, or keystone wall plates, they offer a neat, orderly, and readily upgradeable termination point for a variety of low-voltage cables. Their name comes from their characteristic trapezoidal shape, which resembles a keystone in architecture.
How does a Keystone Jack Work

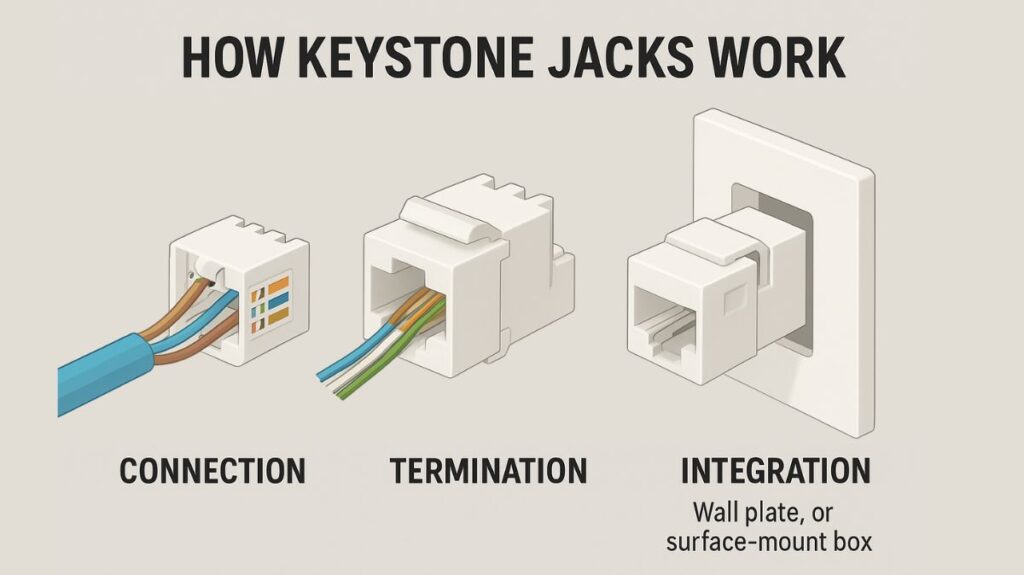

A keystone jack serves as a bridge, joining a patch wire that plugs into a device to a permanent in-wall connection.
Connection: A cable’s wires are placed in accordance with a color-coded wiring standard (T568A or T568B), which is frequently displayed on the jack’s side. After that, these cables are inserted into Insulation-Displacement Connectors (IDCs) located on the rear of the jack.
Termination: By cutting through the insulation of the cable, this procedure establishes a safe electrical connection.
Integration: Next, the whole keystone jack assembly slides into a patch panel, wall plate, or surface-mount box’s appropriate port.
You can also read The Functionality Of RJ22 Connector, RJ48 And RJ50 Connector
Keystone Jack Key Features and Benefits
Modular Design: Keystone jacks are interchangeable and flexible because they fit into common keystone-compatible hardware.
Easy Installation: For rapid termination, they frequently employ snap-in (toolless) or punch-down mechanisms.
Versatility: Numerous connectors for a variety of applications, such as computer networks, home entertainment, and phone services, are supported by the modularity of the keystone system. It is possible to combine many kinds on a single patch panel or wall plate.
Standardization: Because of their uniform size, they work with widely accessible keystone hardware.
Performance: Various cable types are supported by keystone jacks, which can provide high data transfer speeds like gigabit or even 10 gigabit Ethernet, depending on the type.
Organization: They aid in maintaining network cables’ neatness and organization, particularly in setups with numerous connections.
Durability: Jacks are frequently constructed from premium plastic and include gold-plated connections that resist corrosion for dependable, long-lasting operation.
You can also read What is RJ 11 Connectors, Key Features, and Advantages
Keystone Jacks Types
The following criteria are used to classify keystone jacks: application, performance, shielding, and wiring techniques
By Application/Connector Type:
- RJ45 (Ethernet): Connecting computer network cables such as Cat5e, Cat6, Cat6a, Cat7, and Cat8 is the most used variety. A local area network’s RJ45 keystone jack is a crucial part. In order to link PCs, routers, and other network devices, this standardized interface module is frequently utilized. It has been extensively utilized in numerous Ethernet networks due to its ability to deliver dependable and fast data transfer, facilitating efficient communication and data sharing amongst network devices.
- RJ11/RJ12 (Telephone): Regarding telephone lines and equipment.
- Coaxial (F Connector/RG6): For cable TV, satellite, CCTV, and television.
- HDMI/USB: For data transport, peripheral connections, and audio/video.
- Audio (RCA, Banana Plug, 3.5 mm TRS): For sound systems, speakers, headphones, microphones, or home theatre.
- Fiber Optic: For tying together fiber optic cables, such Subscriber Connector (SC) or Lucent Connector (LC) fiber connections.
- Blank Keystone Jacks: Utilized to conceal vacant jack locations in patch panels or wall plates.
By Performance Category (for Ethernet):
- Cat5e: Allows for rates of up to 1 Gbps (1000 Mbps) using a 100 MHz transmission frequency.
- Cat6: Supports transmission frequencies of up to 250 MHz, allowing rates of up to 1 Gbps (1000 Mbps) over 100 meters and up to 10 Gbps over shorter distances (up to 55 meters).
- Cat6a: Supports a transmission frequency of 500 MHz and rates of up to 10 Gbps over a 100-meter distance.
- Cat7: Allows for rates of up to 10 Gbps at a 600 MHz transmission frequency.
- Cat8: Allows for rates of up to 40 Gbps at a 2000 MHz transmission frequency.
By Shielding Type:
- Unshielded (UTP): With less electromagnetic interference, this PC or ABS plastic product is appropriate for a variety of home and workplace network settings.
- Shielded (STP/FTP): Protects against signal loss and attenuation in high-interference conditions by blocking external electromagnetic interference with a metal or alloy casing.
By Wiring Method:
- Punch-Down: Need a specific punch-down tool to cut extra wire and create a secure connection by pushing individual wires into IDC slots. Because it is more dependable and long-lasting, this approach is recommended. There are two types of IDCs: Krone-type (popular in Europe) and 110-type (common in the Americas).
- Toolless: Usually a plastic cap is used to drive wires into IDC slots simultaneously, allowing for rapid installation without the need for a punch-down tool. frequently utilized in homes and small offices.
By Wiring Direction (for RJ45 jacks):
- 90 Degree: The term “90 degree keystone jack” describes a keystone jack with an IDC that is 90 degrees from the RJ45 socket.
- 180 Degree: The term “180 degree keystone jack” describes a keystone jack with an IDC that is 180 degrees from the RJ45 socket. The application market’s habits will determine the specific option; there is no performance difference between it and the 90 degree jacks.
Businesses such as ICC and Gcabling provide a large selection of keystone jacks in a variety of categories, colours, and packaging sizes to satisfy varied network needs. The application environment, performance requirements, installation simplicity, and adherence to pertinent standards should all be taken into account when selecting a keystone jack.
