UHF Connectors (Ultra High Frequency)
Contrary to their name, UHF connectors are a kind of RF (radio frequency) coaxial connector with non-constant impedance that is mostly utilized for low-frequency applications in the HF (High Frequency) and VHF (Very High Frequency) bands. They have a long history of usage in radio and are renowned for their durability. The SO-239 female socket and the PL-259 male plug are the most widely used varieties.
You can also read Different Types Of MAC Addresses (Media Access Control)
Key Characteristics
Non-Constant Impedance: UHF connectors feature a non-constant impedance all the way along, in contrast to the majority of contemporary RF connectors. At frequencies higher than roughly 100 MHz, this results in signal reflections and substantial signal loss, rendering them inappropriate for the current UHF range (300 MHz–3 GHz).
Threaded Coupling: The secure 5/8″-24 UNEF threaded coupling they employ offers a dependable, high-power connection that is vibration-resistant.
High Power Handling: UHF connectors are widely used to connect high-power transmitters and amateur radio amplifiers because of their reputation for handling high RF power levels.
Rugged Design: They are incredibly durable and easy to build, even for novices, their straightforward, sturdy design, which features a big pin and a wide-threaded body.
Applications
In certain markets where their special qualities are advantageous, UHF connectors continue to be widely used.
Amateur Radio (Ham Radio): The most popular application is amateur radio, sometimes known as ham radio. They are commonly used to connect equipment and antennas in the VHF and HF bands.
Citizens Band (CB) Radio: Used for base station and mobile CB radio antenna connections.
Marine VHF Radio: Located on antenna systems and marine radio equipment.
Public Address Systems: Some older audio and PA systems make use of public address systems.

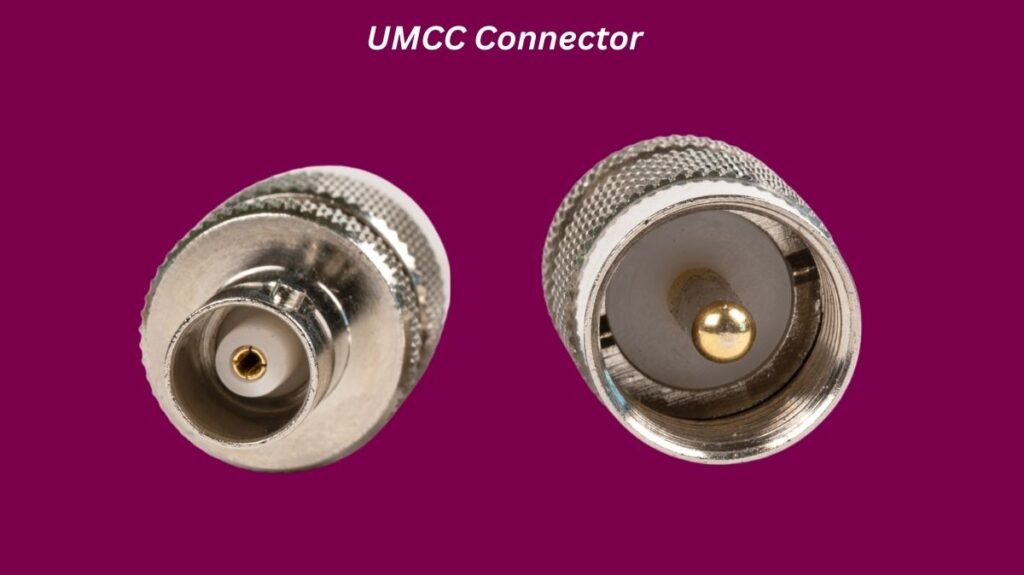

UMCC Connector (Ultraminiature Coax Connector)
Microminiature RF coaxial connectors known as UMCC (Ultraminiature Coax Connector) connectors are made for high-frequency, space-constrained applications. They belong to a class of cross-compatible connections that go by names like AMC, I-PEX MHF, and U.FL.
Key Characteristics
Extremely Small Footprint: The primary benefit of UMCC connectors is their ultra-low profile and extremely small footprint on the printed circuit board (PCB). They are hence ideal for tiny electronics.
Snap-On Coupling: They mate quickly and easily without the use of tools a snap-on or push-pull mechanism. For quick assembly procedures, this is perfect. They aren’t made for frequent disconnections, though, because they usually only have 30 mating cycles.
High-Frequency Performance: Wi-Fi, Bluetooth, GPS, and other wireless applications can all benefit from the 50 Ω impedance and 6 GHz performance rating of UMCC connectors.
Surface Mount Technology (SMT): Compatible with automated production processes, the male jack is usually a surface-mount component glued straight onto the PCB.
You can also read SMB, SMC And SMA Connectors, RCA AND SHV Connectors
Applications
In contemporary consumer electronics and wireless devices where space is at a premium, UMCC connectors are widely used.
Laptops and PCs: They are frequently used in laptops and PCs to link internal Wi-Fi, Bluetooth, or cellular antennas to an M.2 or Mini PCI card.
Mobile and IoT Devices: Smartphones, tablets, GPS units, and other tiny electronic devices that need an antenna connection are examples of mobile and Internet of Things devices.
Drones and Robotics: Used in communication and control systems when small, light parts are crucial.
K Connectors (Millimeter Wave Connectors)
Precision RF/microwave coaxial connectors known as K connectors are made especially for usage at millimeter-wave frequencies. They are perfect for high-frequency and high-performance applications because they are designed to function up to 40 GHz.
Key Characteristics
High-Frequency Performance: Modern high-speed communications depend on K connectors’ ability to handle frequencies well into the millimeter-wave region. At high frequencies, their design reduces reflections and signal loss.
Compatibility: Their compatibility with 3.5 mm and SMA connectors is an important characteristic. Although they have the same 1/4″-36 UNF thread as SMA connectors, they may mate without harming the bigger female contact of the SMA because of their exact air dielectric and smaller inner conductor. Although this backward compatibility is helpful for test and measurement applications, the SMA’s performance is restricted to 18 GHz, therefore care must be taken when connecting it to K connections.
Precision Engineering: To guarantee reliable functioning, they are built with tight tolerances and are categorized as precision connectors. They are frequently used as calibration standards for test equipment because of this.
Threaded Coupling: To provide a safe, reliable, and repeatable connection, they employ a threaded coupling mechanism.
Applications
Applications requiring high-bandwidth data transmission and millimeter-wave frequency operation depend on K connections.
5G Communications: Especially in the higher-frequency bands, this technology is utilized in the testing and installation of 5G networks.
Test and Measurement: Spectrum analyzers and vector network analyzers (VNAs) that function in the millimeter-wave and microwave ranges are among the many types of test equipment for which they are the standard connector.
Aerospace and Defense: In satellite communications, radar systems, and other high-frequency military uses.
