What is Link State Routing Protocol
Computer networks and other packet-switched networks use Link-State Routing Protocols (LSRPs), a sophisticated kind of dynamic routing protocol, to enable effective data packet transfers between routers. They belong to one of the two primary classes of routing protocols, along with distance-vector protocols. Generally speaking, LSRPs are categorized as Interior Gateway Protocols (IGPs).

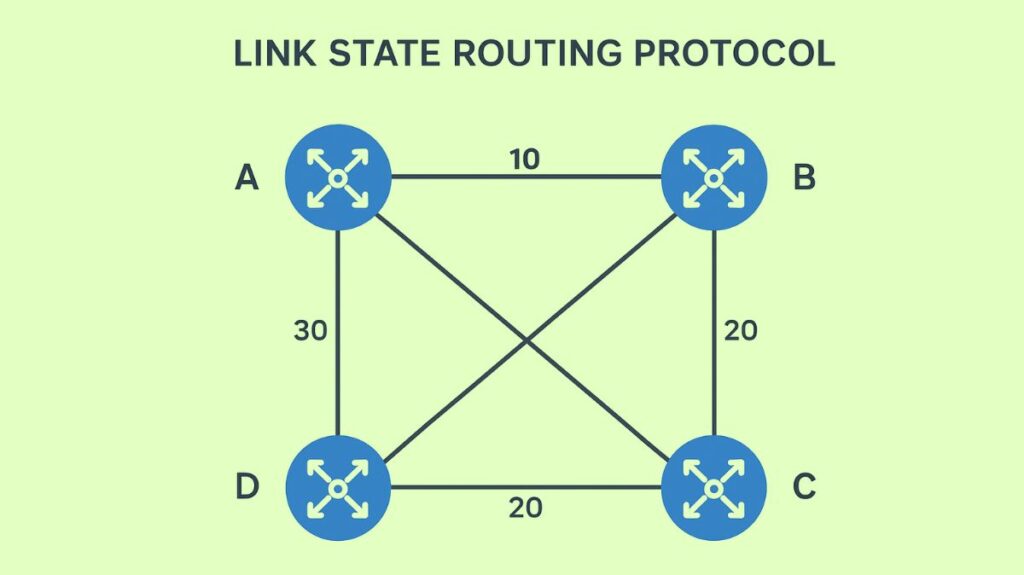

Link-state routing’s fundamental idea is that every router creates an internal, detailed map of the network’s connectivity, in the form of a graph that indicates which nodes are connected to which other nodes. Instead than depending on neighbors’ information or imprecise knowledge about distant networks, distance-vector protocols give each router a comprehensive picture of the network topology. Subsequently, every node autonomously determines the optimal logical route from itself to every potential network destination.
You can also read Advantages Of Routing Information Protocol And How RIP Works

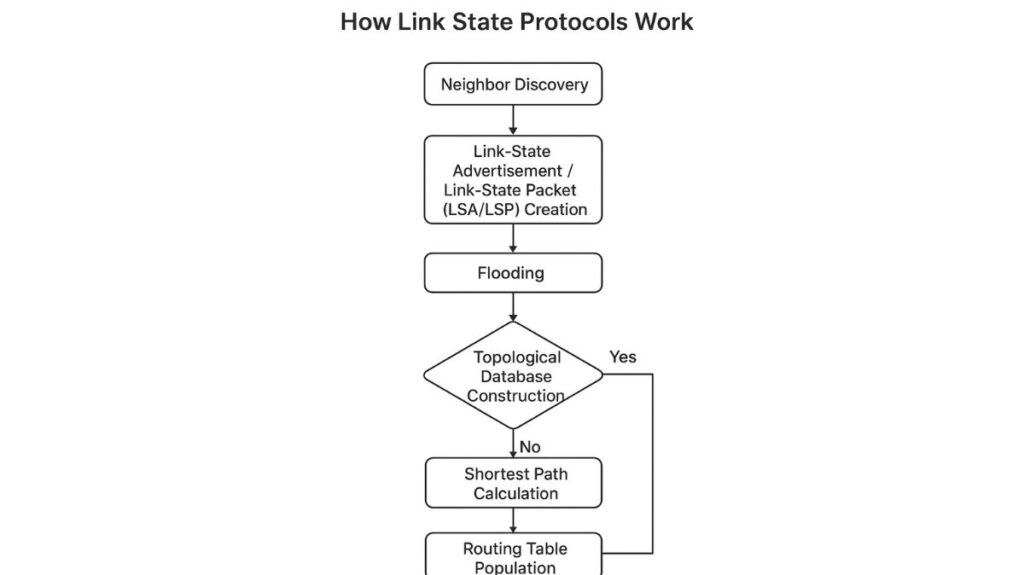

How Link State Protocols Work
The process involves several key steps:
Neighbor Discovery: Usually through the exchange of “Hello packets,” each router initially determines which of its neighbors are directly connected. Periodic keepalives are another usage for these messages, which are meant to preserve neighbor connections.
Link-State Advertisement (LSA) / Link-State Packet (LSP) Creation: Ad and Link-State Packet. Each router creates an LSA or LSP when neighbors are detected. This packet comprises the router’s ID, each link’s “cost” (bandwidth, delay), and the IDs of any additional nodes (routers or networks) to which it is directly linked. A sequence number that increases with every new ad is included in every LSA.
Flooding: LSAs are then flooded over the network as a whole. Every router forwards an LSA to every neighbor besides the one from which it originated. This guarantees that each LSA is finally copied to each router in the network. The router immediately floods a changed LSA (such as when an interface fails). Even if nothing has changed, LSAs are re-flooded every 30 minutes to ensure consistency.
Topological Database Construction: Every router keeps track of all the LSAs it has received in an LSDB. An entire and identical representation of the network topology in a specific area is represented by this database.
Shortest Path Calculation: Each router independently executes a shortest-path algorithm using the entire network map stored in its LSDB. It is Dijkstra’s Shortest Path First (SPF) algorithm that is most frequently utilized. The shortest (least expensive) route between the router and every other location in the network, including all potential locations or subnets, is determined by this technique. The outcome is a tree with SPF.
Routing Table Population: The router’s routing table is filled with the outcomes of the shortest-path calculation. Data packets are then forwarded to their destinations based on this table.
Key Characteristics and Advantages
Complete Network View (Topological Map): Every router has an identical, comprehensive, and up-to-date map of the network topology, which facilitates command and comprehension.
Fast Network Convergence: Rapid network convergence is a significant benefit. Shorter convergence times result from routers being able to quickly update their routing tables and recalculate routes since LSAs are instantly flooded when network changes (such as a link failure).
Scalability and Efficiency: LSRPs are very effective and scalable for big, complicated networks. Their hierarchical design, which divides the network into several sections for improved route summarization, helps them do this by lowering the size of each router’s topology database and update traffic.
Event-Driven (Triggered and Incremental) Updates: Following initial floods, LSAs are only sent in response to topology changes and only provide a change’s specific details (event-driven updates). Because they don’t send out full routing table updates regularly, they use bandwidth more efficiently than distance-vector protocols.
Loop Prevention: Older distance-vector protocols frequently have routing loops, which are typically not an issue with link-state protocols. Techniques like split horizon and route poisoning are not required when the SPF method is used and a consistent topology database is maintained.
Accurate and Optimal Routing: LSRPs identify extremely accurate and optimum, least-cost routes for a whole topology by applying Dijkstra’s algorithm.
Support for CIDR and VLSM: Link-state protocols facilitate Variable Length Subnet Masking (VLSM) and Classless Inter-Domain Routing (CIDR).
Sophisticated Metrics: Instead of focusing only on hop count, they can take into account a number of variables when choosing a path, including bandwidth and delay.
Disadvantages and Concerns
Memory Requirements: Compared to distance-vector protocols, LSRPs use more memory because they build and manage an SPF tree and database (LSDB).
Processing Requirements: Since link-state protocols create a comprehensive picture of the topology, the SPF algorithm calls for more CPU time and is computationally demanding than distance-vector algorithms (such as Bellman-Ford).
Bandwidth Consumption: The first flooding of LSAs during network setup, network failures, or major topology changes can use a lot of bandwidth, even though incremental updates are effective. Instability in the network may lead to problems with available bandwidth.
Examples of Link State Routing Protocols
The most well-known and widely used link-state routing protocols include:
Open Shortest Path First (OSPF): IP-based enterprise and service provider networks use OSPF. IPv4 utilizes OSPFv2 and IPv6 OSPFv3.
Intermediate System to Intermediate System (IS-IS): Primarily utilized in expansive service provider networks, this protocol was initially created for the OSI suite but was modified for IP.
Optimized Link State Routing Protocol (OLSR): Link-state routing that is tailored for mobile ad hoc networks is called Optimized Link State Routing Protocol (OLSR).
Link-state routing was first introduced by John M. McQuillan in 1979 as a way to compute routes more rapidly and reliably as network conditions changed.
