Advantages and Disadvantages of Spatial Data Structures

Spatial Data Structures in Data Science

Introduction

Geographical data structures are critical in data science, particularly in GIS, computer graphics, robotics, and other applications that require efficient spatial data storage, retrieval, and manipulation. Spatial data refers to the location, shape, and connections of geometric objects such as points, lines, and polygons. Data science applications need efficient data management for performance and scalability.

This article discusses data science‘s main spatial data structures, their uses, and Advantages and Disadvantages of Spatial Data Structures. It will be discussed how Quadtrees, R-trees, KD-trees, and Grids fit into modern data research methods.

What Are Spatial Data Structures?

Storage and organization of spatial data is optimized via spatial data structures. They speed up multidimensional geometric object querying, indexing, and manipulation. These structures help with tasks like:

• Spatial indexing speeds up massive dataset searches.
• Range queries find all items in a region.
• Nearest neighbor search: Finding the nearest object(s).
• Collision detection: Finding collisions.
• Data visualization: Efficient spatial rendering.

Data type, query types, and application performance limitations determine spatial data structure.

Important Spatial Data Structures

1. Quads
Hierarchical data structures called quadtrees recursively subdivide 2D space into four quadrants. Quadtree nodes represent regions, and leaf nodes include spatial data like points, lines, and polygons.

Applications:

• Image processing (compression, segmentation).
• GIS (map rendering).
• Game and simulation collision detection.

Advantages:

• Effective for sparse data.
• Simple to implement and visualize.

Limitations:

• Uneven data distribution hurts performance.
• Only 2D (but 3D extensions like octrees exist).

2. R-trees
R-trees index multi-dimensional data like points, lines, and polygons. Each R-tree node is a bounding box for a set of objects. Balanced trees optimize query performance.

Applications:

• Geographical information systems (map spatial indexing).
• Databases (PostgreSQL/PostGIS).
• Range and nearest neighbor searches.

Advantages:

• Effective for high-dimensional data.
• Has dynamic updates (insertions, deletions).

Limitations:

• Implementation complexity.
• Bounding boxes that overlap can slow queries.

3. KD-trees
KD-trees organize points in k-dimensional space using binary trees. Each node alternates between dimensions at each tree level.

Applications:

• Find nearest neighbor.
• Range queries.
• K-nearest neighbors algorithm, machine learning.

Advantages:

• Effective for low-dimensional data.
• A breeze to implement.

Limitations:

• Data with high dimensions reduces performance.
• Poor for dynamic datasets (frequent updates).

4. Grids
Grids organize space into fixed-size cells. Each cell catalogs intersecting objects. Simple grids work well for spatial inquiries.

Applications:

• Game collision detection.
• Fast lookups with spatial hashing.
• Pixel-based image processing.

Advantages:

• Fast and easy for consistent data distributions.
• Easy parallelization.

Limitations:

• Inefficient with sparse data.
• Uneven data distribution might result from fixed cell size.

5. BSP Trees
BSP trees use hyperplanes to iteratively divide space into two. Computer graphics employ them for rendering and collision detection.

Applications:

• Visibility-determining 3D rendering.
• Game development (level design).
• Robotics (path planning).

Advantages:

• Effective in 3D.
• Supports sophisticated spatial queries.

Limitations:

• Implementation complexity.
• High memory usage for big data.

6. Voronoi Diagrams
Voronoi diagrams divide space by point distance. All points closest to an input point are in each region.

Applications:

• Find nearest neighbor.
• Define watersheds using terrain analysis.
• Optimization of facility location.

Advantages:

• Displaying spatial proximity naturally.
• For geometric computations.

Limitations:

• Building computationally expensive.
• Point-based data only.

Data Science using Spatial Data Structures

1. GIS
Map rendering, geographical indexing, and geospatial analysis depend on spatial data structures in GIS applications. GIS databases use R-trees for quick spatial data querying.

2. ML
KNN and other machine learning algorithms use spatial data structures to efficiently discover the closest data points. Ball trees and KD-trees are popular for this.

3. Gaming and computer graphics
BSP trees and quadtrees are used for rendering, collision detection, and visibility in computer graphics. The structures enable real-time performance in complex 3D settings.

4. Robotics
Robotics applications like path planning and obstacle avoidance represent the environment and execute efficient geographic searches using spatial data structures.

5. Transportation and Urban Planning
Road networks, public transportation systems, and utility grids are analyzed and optimized using spatial data structures.

Advantages of Spatial Data Structures

1. Effective Spatial Querying
   Range searches, nearest neighbor searches, and intersection detection are optimized by spatial data structures. GIS applications must analyze massive datasets fast, therefore efficiency is essential.
2. Enhanced Performance
   These data structures simplify computing by structuring spatial data. Quadtrees and R-trees can speed up data search processes compared to linear scans.
3. Scalability
   R-trees and grids scale well to huge datasets. They are important in urban planning, where datasets can be large and complex.
4. Multidimensional Data Support
   KD-trees and R-trees can handle multi-dimensional data, making them excellent for machine learning, robotics, and computer graphics.
5. Dynamic Updates
   R-trees and quadtrees allow dynamic updates (insertions, deletions, and alterations) without rebuilding. Real-time games and autonomous vehicles require this feature.
6. Versatility
   Spatial data structures are used in GIS, computer graphics, robotics, and machine learning. The KNN algorithm uses KD-trees extensively.
7. Memory-efficient
   Quadtrees and grids allocate memory solely for data regions, making them memory-efficient for sparse data. This minimizes memory use.
8. Multiprocessing friendly
   Distributed systems can compute faster with parallel processing-compatible spatial data structures like grids.

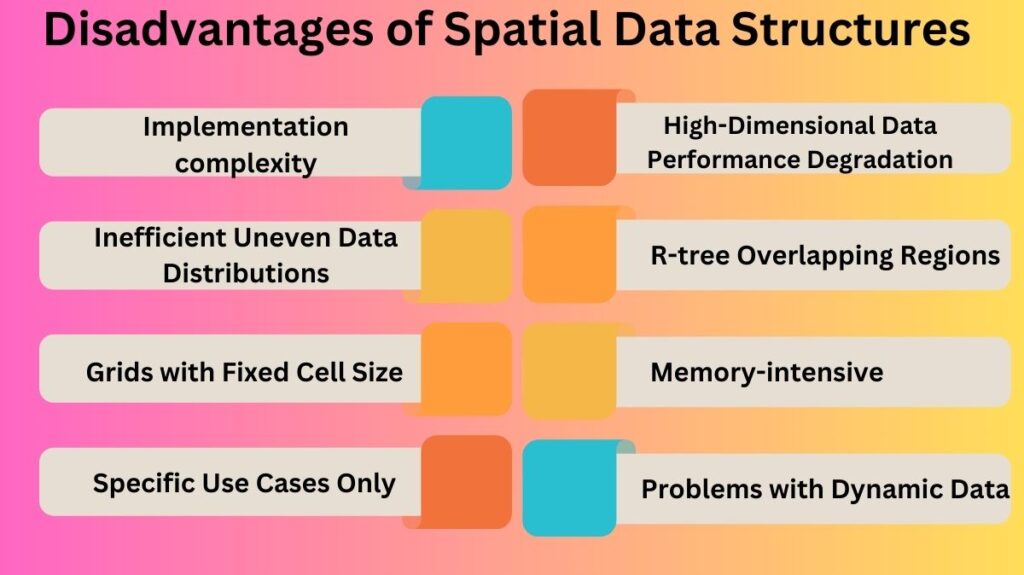

Disadvantages of Spatial Data Structures

1. Implementation complexity:Many geographic data structures, such R-trees and BSP trees, are difficult to build and need spatial algorithm knowledge. Complexity can increase development time and expense.

2. High-Dimensional Data Performance Degradation
   KD-trees and quadtrees work well in low-dimensional spaces but suffer in high-dimensional data. This constraint is called the “curse of dimensionality.”
3. Inefficient Uneven Data Distributions
   Quadtrees and grids struggle with unequal data. Quadtrees may waste memory and compute resources by creating many empty nodes in sparse places.
4. R-tree Overlapping Regions
   Overlapping bounding boxes can slow R-tree queries. This requires careful tree structure optimization to reduce overlaps.
5. Grids with Fixed Cell Size
   Grids’ set cell size can cause inefficiencies when data is unevenly distributed. While large cells reduce query accuracy in crowded locations, small cells waste memory in sparse regions.
6. Memory-intensive
   BSP trees and Voronoi diagrams can use a lot of memory, especially for huge datasets or complex geometries.
7. Specific Use Cases Only
   Structures are tailored for specific queries or data. Voronoi diagrams work well for nearest neighbor searches but not range queries or dynamic updates.
8. Problems with Dynamic Data
   Some structures, like KD-trees, are unsuitable for dynamic datasets. Rebuilding the structure is computationally costly.

Challenges and Future Directions

1. Scalability: Scalability of geographical data structures becomes important as datasets grow. Distributed spatial indexing and parallel processing are being investigated for this problem.

2. HD Data: Many spatial data structures work well in low-dimensional regions but suffer in high-dimensional ones. Structures that efficiently handle high-dimensional data are being researched.

3. Live Processing: Real-time applications like driverless vehicles and augmented reality demand spatial data structures that can manage dynamic data and respond quickly.

4. Machine Learning Integration: Integrating geographical data structures with machine learning algorithms is new research. Spatial indexing speeds up spatial data model training and inference.

Conclusion

Data scientists need spatial data structures to store, retrieve, and analyze spatial data. Each structure—quadtrees, R-trees, KD-trees, and Voronoi diagrams has strengths and weaknesses, making it appropriate for various applications. Scalable, high-performance spatial data structures will help solve modern geographic data analysis problems as data science evolves.

Data scientists can choose the best spatial data format for their purposes by knowing its principles and applications, enhancing workflow efficiency.
