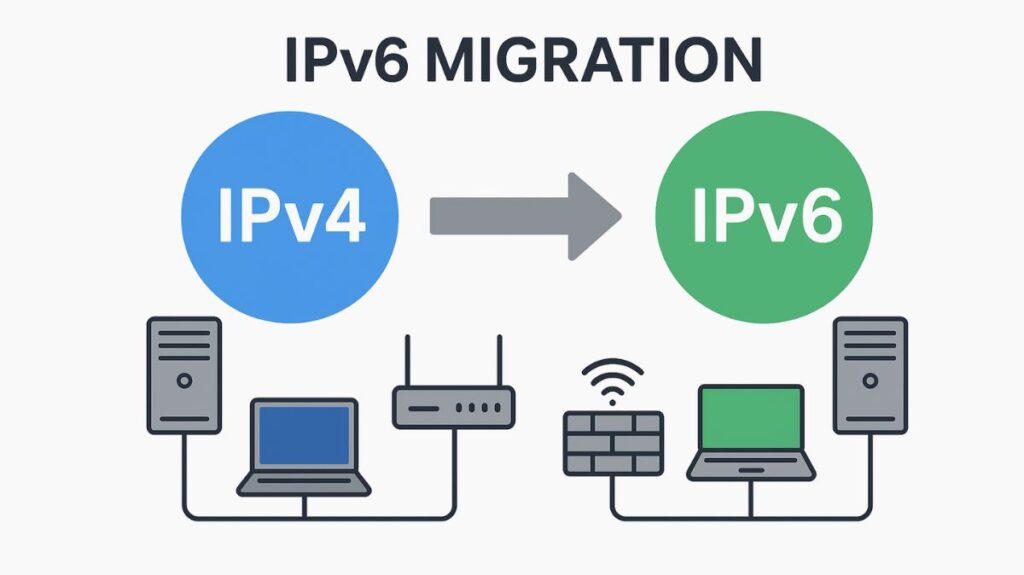

IPv6 Migration
The process of switching network devices, applications, and infrastructure from the outdated Internet Protocol version 4 (IPv4) to the more recent IPv6 is known as IPv6 migration. This change is required since IPv6 offers a nearly infinite number of addresses, but IPv4’s finite address space has been used up. Networks must be properly set up to accommodate both IPv4 and IPv6 throughout this transition because they are not immediately compatible.
You can also read FIM Federated Identity Management Vendors And SSO Vs FIM
Why Migrate to IPv6?
There are several main reasons to switch to IPv6, which take into account both the present shortcomings of IPv4 and upcoming networking requirements:
IPv4 Address Exhaustion: Due to the increasing number of devices connected to the internet, IPv4’s restricted address space of roughly 4.3 billion unique addresses is no longer adequate. The Internet Assigned Numbers Authority (IANA) has allotted the last blocks of IPv4 space to Regional Internet Registries (RIRs), so technically, IPv4 space has already run out.
Larger Address Space (Scalability): When compared to IPv4’s 32-bit address, IPv6’s 128-bit address greatly expands the address space. This overcomes the issue of address scarcity for generations and supports the proliferation of smart devices, mobile phones, and Internet of Things (IoT) devices by offering an almost infinite supply of IP addresses (theoretically exceeding 10^38). More hierarchical and flexible addressing is also made possible by this large area, which results in more effective and scalable routing.
Improved Routing Efficiency: By reducing processing overhead on networking equipment, IPv6 can help network teams managing high traffic volumes avoid certain bottlenecks. In contrast to IPv4’s variable-length header, its streamlined header, which has a constant length of 40 bytes, enables routers to handle it more quickly.
Enhanced Security: Unlike IPv4, IPv6 has IPsec encryption built into the protocol as a core feature. This means that IPsec is available and enabled on all IPv6 nodes, increasing the security of the IPv6 Internet.
Elimination of Network Address Translation (NAT): Businesses can configure their networks without NAT at the network edge because IPv6 is big enough to handle almost 340 trillion publicly addressable IP addresses. This makes network management easier and boosts speed.
Simplified Configuration: With the help of stateless address autoconfiguration (SLAAC), which IPv6 allows, hosts can dynamically configure their IPv6 addresses depending on network prefixes that routers announce. This eliminates the requirement for a DHCP server for basic address assignment.
Improved Mobility: IPv6 comes with enhanced mobility built right in, so any IPv6 node can use it as needed.
Elimination of Broadcasts: Because IPv6 uses multicast and anycast addresses rather than broadcast addresses, it reduces needless traffic and increases network efficiency.
Support for New Protocols: Neighbour Discovery Protocol (NDP) replaces ARP, and ICMPv6 replaces ICMPv4, among other protocols introduced or updated by IPv6.
Customer Demand and Mandates: Businesses may be required to support IPv6 if customers wish to utilize it. Adoption of IPv6 is also required in certain nations and organizations.
Key Differences between IPv4 and IPv6
| Feature | IPv4 | IPv6 |
|---|---|---|
| Address Length | 32-bit | 128-bit |
| Address Space | ~4.3 billion addresses | ~340 undecillion addresses (virtually unlimited) |
| Address Format | Decimal, dotted (e.g., 192.168.1.1) | Hexadecimal, colon-separated (e.g., 2001:0db8::1) |
| Configuration | Manual or DHCP required | SLAAC (automatic), DHCPv6, or manual |
| Header Size | Variable and complex | Fixed and simplified |
| Security | Optional (IPsec add-on) | Mandatory support for IPsec |
| NAT (Network Address Translation) | Commonly used due to address shortage | Not required (huge address space) |
| Broadcast | Supported | Not supported (uses multicast/anycast) |
| Routing | Less efficient | More efficient and hierarchical |
| Compatibility | Older, widely deployed | Newer, gradual global adoption |
You can also read Advantages Of IDaaS Identity as a Service In Cloud Computing
Migration Strategies to IPv6
Organizations must use transition strategies since IPv4 and IPv6 are not directly compatible. During the migration phase, IPv4 and IPv6 can cohabit with these strategies:
Dual-Stack Networking
Description: This is the most popular and advised strategy. On network devices (such as hosts, routers, and other equipment), it entails concurrently running the IPv4 and IPv6 protocol stacks. Both protocols can be used by devices to interact, albeit IPv6 is frequently preferred.
Implementation: During configuration, IPv6 routing must be enabled, and interfaces with IPv4 configured must be assigned IPv6 addresses. The majority of contemporary business network hardware is capable of dual-stack operation.
Considerations: Dual-stacking makes devices consume more resources and may require running different Interior Gateway Protocols (IGPs) (e.g., OSPFv3 for IPv6 if OSPFv2 is used for IPv4), even though modifications to one stack usually have no effect on the other. Examining whether network devices can manage increased throughput, have limited TCAM capacity, and have the same functionalities for IPv6 security devices is essential.
IPv6 Tunneling
Description: By encapsulating an IPv6 packet inside an IPv4 packet, this technique transfers IPv6 packets over networks that only support IPv4. By establishing a “tunnel” across the IPv4 network, it enables communication between isolated IPv6 networks or hosts via an intermediary IPv4-only network. In the IPv4-only sector, intermediate routers do not have to support IPv6.
Types: Popular tunnelling protocols consist of:
- Manual Tunnels: Like a VPN without encryption, utilizing techniques like IP over IP (IPIP) or Generic Routing Encapsulation (GRE). Ideal for establishing a connection between a few IPv6 islands over an IPv4 network.
- Tunnel Broker: Devices with IPv6 capabilities create a tunnel to the service provider in order to access the IPv6 internet. The service provider delivers IPv6 over IPv4.
- 6RD (Rapid Deployment): A customer edge (CE) device tunnels to a 6RD Border Relay on the provider network over an IPv4 underlay, allowing ISPs to swiftly offer IPv6 to consumers.
- DS-Lite (Dual-Stack Lite): Supports IPv4 hosts by tunnelling IPv4 over an IPv6 transit network. Carrier-grade NAT converts IPv4 addresses into IPv6 addresses and then translates them back to IPv4 before they are sent to the internet.
- LISP (Locator ID Separation Protocol): A helpful overlay method for joining several IPv6 islands, particularly in situations when alterations to the underlying infrastructure are not feasible.
- ISATAP (Intra-Site Automatic Tunnel Addressing Protocol): To access IPv6 addresses, a dual-stack host creates a tunnel to an IPv6 gateway over an IPv4 network.
- Teredo Tunneling: To avoid problems with NAT translation points on the IPv4 network, traffic is encapsulated in UDP packets.
Challenges: Although tunnelling is often thought of as a short-term fix, it can cause latency. Furthermore, it may present a security concern since IPv6 packets’ internal contents may be obscured by IPv4 security filters, necessitating filtering at the tunnel’s edges.
Protocol Translation (NAT-PT)
Description: This approach to combining IPv4 and IPv6 networks is regarded as a last option. NAT-PT extracts data from a source IP type and repackages it as the new destination IP type in place of encapsulating it. It enables communication between IPv4-only and IPv6-only hosts and vice versa.
Types:
- NAT-PT (Network Address Translation – Protocol Translation): Translates IPv4 addresses into IPv6 and the other way around. It can be dynamic (using a pool of IPv4 addresses) or static (one-to-one mapping). On the other hand, the source material cautions against using outdated technologies such as NAT-PT.
- NAT64: The main method of IPv4 to IPv6 translation that enables IPv6 clients to connect to IPv4 servers. It can be either stateless (a one-to-one relationship for communication in either way) or stateful (enabling IPv6-initiated connections to access IPv4).
- DNS64: Synthesizes AAAA records for IPv4-only servers in order to work with NAT64 when an IPv6 client requests a AAAA record that isn’t there. The client then utilizes the fictitious AAAA record that the DNS64 server generates with the IPv4 address to start a conversation through the NAT64 device.
- SLB64 (Server Load Balancing 64): Uses a load balancer to display an IPv6 frontend while keeping backend services IPv4. For legacy apps, this is a temporary fix.
Considerations: Translation services are ineffective when applications have hard-coded IP addresses since they depend on DNS functioning properly. Because several services are accessed from a single IP address, NAT64 can occasionally appear to security devices as a DoS attack and can break HTTP headers employing client IPs (such as X-Forwarded-For).
You can also read Application Virtualization Use Cases And Challenges
Migration Process and Best Practices
A methodical, staged strategy is necessary for an IPv6 migration to be successful:
Discovery Phase: Determine the corporate objectives and factors influencing IPv6 adoption. This entails presenting a business case for the project, taking industry and governmental compliance into account, and assembling a project team that consists of more than just network employees.
Assessment Phase: Determine possible problems, such as programs with hard-coded IP addresses, equipment that does not support IPv6 or only partially does, extra licensing needs, and the requirement for staff training.
Planning and Design Phase: Get or make plans for IPv6 addresses (it is advised to choose a provider independent). Choose an IPv6 island, edge, or core as the deployment starting point. Select a migration plan; dual-stack is frequently advised. Addressing, LANs, WANs, and security are all part of the design.
Implementation/Deployment Phase: Before rolling out IPv6 to the rest of the network, it is best to start with a small pilot deployment to work out any bugs, test outcomes, and get user input. The least amount of disturbance is caused via a staggered deployment, beginning with services that are visible to the public and progressing to internal networks.
Network Optimization Phase: The network is continuously monitored, user input is gathered, and the network is adjusted for maximum security and performance both during and after the transition.
In order to avoid dual-stacking, tunnelling, or translation techniques within the private network, companies may also decide to build an IPv6 network from the ground up during their subsequent network hardware refresh cycle.
Challenges of IPv6 Migration
IPv6 adoption has been sluggish despite the obvious necessity because of a number of issues:
Compatibility: Many legacy systems, such as older network gear and apps, were created specifically for IPv4 and need to be upgraded or replaced in order to support IPv6.
Cost and Complexity: Due to the need for new software, hardware, and employee training, the transfer may be costly. It becomes more complicated to manage a dual-stack network.
Lack of Expertise: Network experts with in-depth understanding of IPv6 deployment and security are in limited supply worldwide.
Security: Even though IPv6 comes with built-in IPsec, if the switch is not handled correctly, it may create new vulnerabilities that call for modifications to intrusion detection systems, firewalls, and security rules.
Hard-Coded IP Addresses: It may be necessary to identify and update any hard-coded IPv4 addresses found in applications, configuration files, and system settings.
