Data Terminal Equipment DTE
Devices that operate at the ends of a communication link are referred to as data terminal equipment (DTE), a core word in networking and telecommunications.
Data terminal equipment definition
Any equipment that may act as a source or destination for binary digital data is referred to as data terminal equipment, or DTE.
- Endpoint Role: In a connection, the DTE is the final instrument or device that fulfils the terminal role. It is the gadget that the user will deal with directly.
- Data Processing: Devices that generate, store, or display user data are included in DTE. Digital information is processed or implemented by it.
- Conversion: A DTE device either reconverts received signals or transforms user data into signals for transmission. To send and receive data via a network, it is linked to a Data Circuit-Terminating Equipment (DCE).
Also Read About Advantages Of Wide Area Network WAN Architecture & Features
Functional Characteristics and Connection
The easiest way to comprehend DTE’s role is in relation to DCE (Data Circuit-Terminating Equipment). DTE and DCE constitute opposing endpoints of compliant serial connections and are interdependent.
| Feature | Description |
|---|---|
| Data Flow | The DTE generates digital data and passes it to the DCE. DTE initiates data communication. |
| Formatting | Before transmission, the DTE converts the data to a serial format (transmitted one bit at a time). |
| Clocking | DTE devices generally receive the clock signal for synchronization. DTE will search for clocking along the serial connection, while the DCE provides it. Consequently, a DTE device (like a standard router serial interface) does not typically require a manual clock rate configuration. |
| Serial Communication | In RS-232 systems, DTE uses transmit (TX) and receive (RX) pins to send and receive data. |
| Data Integrity | DTE manages data flow control using techniques like handshaking and buffering (e.g., XON/XOFF and RTS/CTS). It also handles error detection and correction using methods such as checksums, parity bits, and Cyclic Redundancy Check (CRC). |
Data terminal equipment examples
DTE covers a broad range of endpoint devices.
Typical instances consist of:
- PCs, laptops, microcomputers, and servers are examples of computers.
- Terminals (including vintage video terminals).
- printers.
- When connecting to a Wide Area Network service provider, routers are frequently regarded as DTE.
- Additional devices include industrial controls, smartphones, tablets, and fax machines.
Also Read About Cisco Software Defined Networking and How SD-WAN Works
DTE in the Context of Cybersecurity
Data terminal equipment is essential in the rapidly changing field of cybersecurity.
- Secure Framework: Creating a dependable and secure framework for data exchange is the main goal of DTE.
- Protected Transfer: By guaranteeing encrypted and authenticated data transfers to protect sensitive information from unauthorized interception or tampering, DTE enables safe and effective data transfer.
- Endpoint Security: By strengthening the security of devices where data is sent or received, DTE makes a substantial contribution to endpoint security.
Organizations should use cutting-edge encryption and authentication techniques, perform frequent security audits and updates, and incorporate DTE operations with general network security protocols in order to handle DTE in cybersecurity effectively.

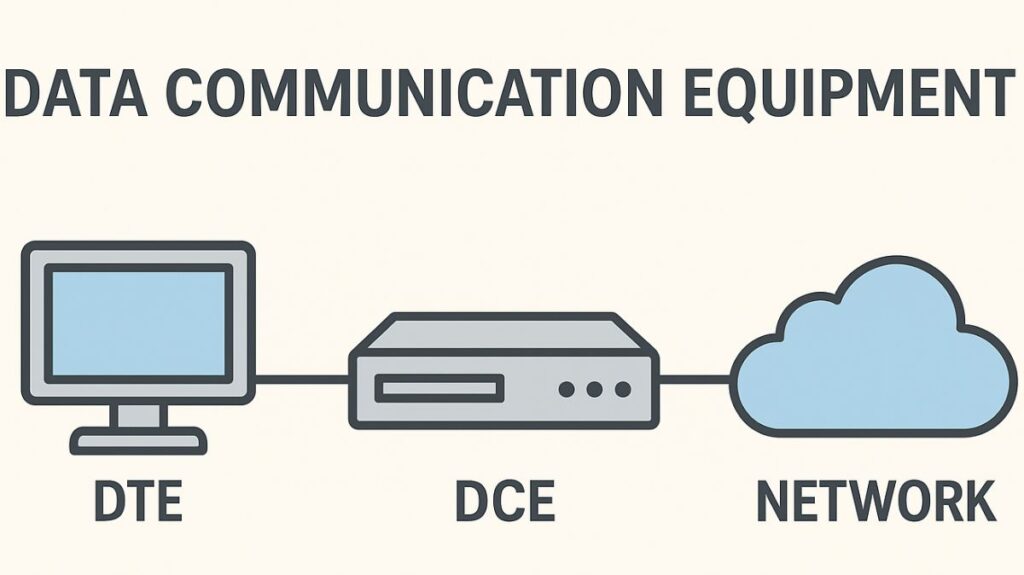

DCE Data Communication Equipment
Data Communication Equipment (DCE), also known as Data Circuit-Terminating Equipment, is a crucial concept in networking and telecommunications. It has also occasionally been referred to as data carrier equipment in the past.
DCE devices are essential parts that serve as the interface between the data transmission circuit or communication network and the Data Terminal Equipment (DTE), which is the user’s device, like a computer.
Also Read About What is Rogue AP Detection Meaning, Configuration and Tools
Primary Role and Location
Data communication between DTEs is facilitated by DCE devices. They are situated between the network and the user’s devices. The establishment, maintenance, and termination of the data transmission link are among the DCE’s primary duties.
Whereas the DTE is focused on creating or receiving data, the DCE is specifically focused on the communications component of data.
The DCE device receives user data from the DTE and transforms it into a format that the WAN service facility may use in a typical Wide Area Network (WAN) configuration. The boundary where traffic responsibility shifts between the WAN provider and the WAN subscriber is frequently indicated by the interface between the DTE and DCE. The OSI model’s Physical Layer, or Layer 1, is where DCE largely functions.
Important DCE Functions
DCE devices carry out essential tasks to guarantee that data produced by a DTE can be reliably transmitted across the network:
Signal Conversion: DCE devices transform the incoming signal back into digital data for the receiving DTE after converting the digital data produced by the DTE into an analogue or digital signal format suitable for the transmission medium. For instance, a modem, sometimes known as a classic DCE, modulates digital data from a computer into analogue audio signals for phone lines and demodulates incoming analogue signals back into digital data.
Synchronization and Clocking: Generally speaking, DTE devices synchronize with the external clock signal (external clocking), while DCE devices supply the clock signal (internal clocking). The timing signals that synchronize data transport across the circuit are provided by the DCE. The exact speed at which data bits are transferred is determined by this clock signal, which is essential in synchronous communication systems.
Physical Connection Management: The DCE oversees the physical connection, which includes data encoding and decoding, error checking, and data flow control. The DCE in a data station is responsible for line clocking, coding, and signal conversion.
Framing: DCEs can control data framing in packet-switched networks that employ protocols like X.25 or HDLC by encapsulating user data into structured packets with headers and error checks, guaranteeing precise delivery.
Data communication equipment examples
Devices that enable system access over telecommunication lines are the most prevalent kind of DCEs. Among the examples are:
- Modern devices.
- Channel Service Unit/Data Service Unit (CSU/DSU): Provides timing, signal regeneration, and line termination for digital circuits such as T1 or E1 lines.
- Multiplexers.
- Terminal Adapter/NT1 or ISDN adapters.
- Routers (whether they are set up to offer clocking in a lab setting or when they are operating as a network-side device).
- satellites (base stations included).
As an analogy, the DCE is the conductor of an orchestra whose instruments, the DTE devices, are required to play in exact unison. In addition to ensuring that the music (the data signal) is accurately translated from the local language of the instruments (the DTE data format) into the universal language of the venue (the WAN service facility), the conductor sets the tempo (the clock rate). The ensemble as a whole becomes out of rhythm if the conductor stops keeping time.
Also Read About Cisco HTTPS Web Communication And Management Protocol
Data terminal equipment and Data communication equipment
To further understand the relationship, picture the DCE (such as a modem or CSU/DSU) as the traffic controller and the DTE (such as your computer or endpoint router) as a vehicle transporting data. The data (the message) is provided by the automobile (DTE), but it depends on the controller (DCE) to set the controlled speed (clocking) and format the data so that it may pass across the communication link (the main highway).
| Category | DTE (Data Terminal Equipment) | DCE (Data Circuit-Terminating Equipment) |
|---|---|---|
| Primary Role | Generates and receives user data | Provides network access and transmits data |
| Function | Acts as the data source or destination | Converts, synchronizes, and sends data to the network |
| Clocking | Receives clocking from DCE | Provides clocking to DTE |
| Typical Devices | Computers, routers (user-side), terminals, servers | Modems, CSU/DSU, ONT, media converters, network-side routers |
| Location in Network | User/customer side | Network/service-provider side |
| Connector Type (RS-232) | Usually male connector | Usually female connector |
| Data Flow Direction | Starts or ends the data communication | Intermediate device enabling communication between DTE and network |
| Communication Responsibility | Creates, formats, and processes data | Handles modulation, demodulation, timing, and signal conditioning |
| Examples in WAN | Customer router | Modem or CSU/DSU connected to the provider line |
Using an analogy to explain DTE/DCE
Consider DCE (Data Communications Equipment, such as a modem or CSU/DSU) as the traffic controller that provides the time signal, and DTE (Data Terminal Equipment, such as your computer or router) as a vehicle that is ready to go. In order to get onto the main highway (the service provider’s network), the automobile (DTE) needs the controller (DCE) to supply the appropriate interface (signal conversion) and the regulated speed (clocking). The car knows what message (data) to transmit. The flow of traffic (data) is chaotic if the controller does not set the pace.
Also Read About Hypertext Transfer Protocol HTTP and Evolution of HTTP
