Demarcation Point

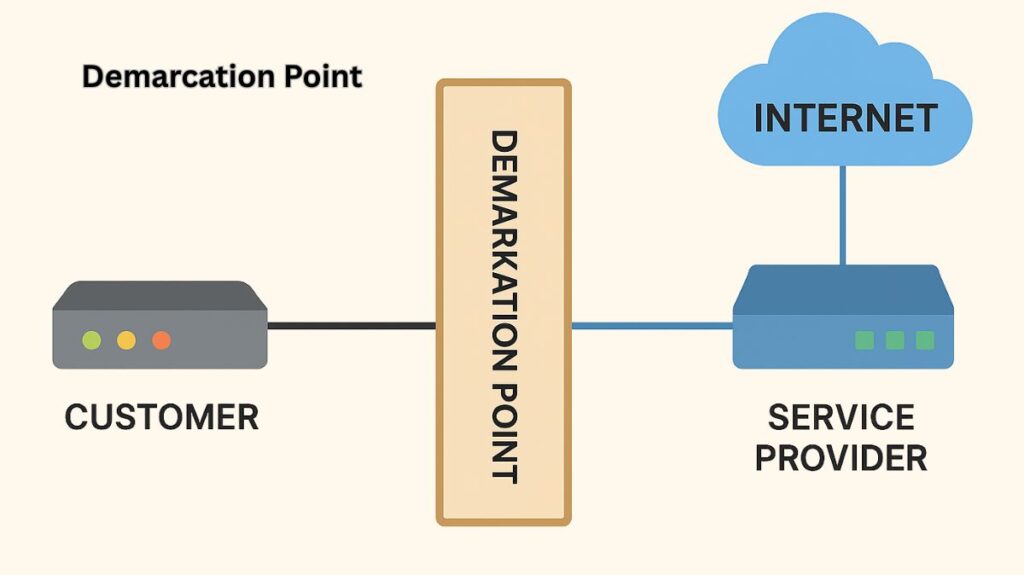

A key and fundamental idea in Wide Area Network (WAN) technology is the Demarcation Point (Demarc), which indicates the precise physical line separating the customer’s private network from the service provider’s responsibilities.
The network demarcation point or network border point are other names for this intersection. Determining who is responsible for network infrastructure maintenance, troubleshooting, and repairs as well as clearly defining legal and operational separation are its fundamental goals.
Definition and Responsibility Boundary
The demarcation point acts as the boundary between the business or residential customer’s on-premises equipment and the public telephone network (or the carrier’s external circuit).
| Responsibility Area | Carrier/Service Provider Side | Customer/WAN Subscriber Side |
|---|---|---|
| Scope | Everything up to and including the demarcation point (device or port). | All cabling, equipment, and network components beyond the demarcation point. |
| Equipment | The demarc device itself (e.g., NID, Smartjack, ONT). | Customer Premises Equipment (CPE), such as modems, routers, switches, and telephone handsets. |
| Maintenance | The provider is responsible for repair, signal quality, and maintenance up to this point. | The customer is responsible for maintaining and repairing the inside wiring and all CPE. |
| WAN Interface | The DCE (Data Communications Equipment) interface, such as a CSU/DSU, often plugs into the demarc. Responsibility for traffic passes between the WAN subscriber and the WAN provider at this interface. | The customer connects their DTE (Data Terminal Equipment) device, like a router, to the DCE device. |
Physical Location and Devices
The demarcation point in a wide area network (WAN) setting is a physical site that is usually connected to the service provider’s circuit termination. This point is frequently found in commercial settings:
- Usually found on the ground floor close to the Minimum Point of Entry (MPOE), a telco closet or demarcation room is a frequent feature of multi-story buildings.
- At the MDF, or Main Distribution Frame: In bigger organisational settings in particular, this serves as the main cross-connect hub.
- In Physical Form: Usually, the telecom provider has placed a device or jack.
The service and bandwidth needs of a WAN connection determine the kind of device that is utilized at the demarcation:
- Smartjacks, also known as Intelligent Network Interface Devices (INIDs), are more sophisticated demarcation points that are frequently seen in corporate network environments. T1 lines and other more complicated systems use it. Circuit boards and signal enhancers are found in a Smartjack, which enables the carrier to remotely check whether a problem is on the customer’s property without having to visit the location.
- Fibre optic cabling interconnects, frequently for high-speed broadband services, are made possible via optical network terminals (ONTs). For the customer’s internal wiring, the ONT transforms the optical signal into electrical signals.
- Network Interface Devices (NIDs) are the most basic type of demarcation point, albeit they are more prevalent in residential networks.
- Network Termination Unit (NTU) or Network Termination Equipment (NTE): Rate limitations or quality of service (QoS) may be enforced for carrier ethernet services using this managed ethernet handoff.
Also Read About Compare Cisco Wireless Architectures And AP Modes In Network
Role in WAN Troubleshooting
When troubleshooting, it is essential to comprehend the demarc. In the event of network problems, it serves as the main testing location.
- Determining whether the issue is external (service provider side) or internal (consumer side) is the aim.
- In order to determine the condition of the circuit going up to the customer’s premises, the provider may ping the smart jack if there is a connectivity problem on a T1 line.
- To distinguish between internal and exterior issues, technicians can utilize a loopback test at the demarcation or a built-in test jack. The problem lies with the customer’s equipment or cabling if the service functions when tested right at the demarc.
Demarc Extension
The customer’s internal equipment (CPE) may be situated distant from the actual demarcation point in many business or enterprise settings, such as a big building or campus.
- The cable installation necessary to move the demarcation point closer to the customer network or the Customer Premises Equipment (CPE) is known as a demarc extension (sometimes called a Service Interface Extension).
- Cabling from the demarc to their CPE (such as a CSU/DSU) is the customer’s responsibility. Media converters or patch cords needed to finish the transmission path may be included in this expansion.
A 20th-century antitrust case against AT&T (the Bell System breakup) that required a distinct division of ownership and accountability between the phone company’s property and the private customer’s property gave rise to the demarcation point.
At the demarcation, the WAN provider’s network and the customer’s network are like two distinct rivers coming together: the carrier manages the water’s flow and quality (service) until it reaches the customer’s pipe (internal network), after which the customer is in charge of maintaining the integrity of their own piping and any devices attached to it.
