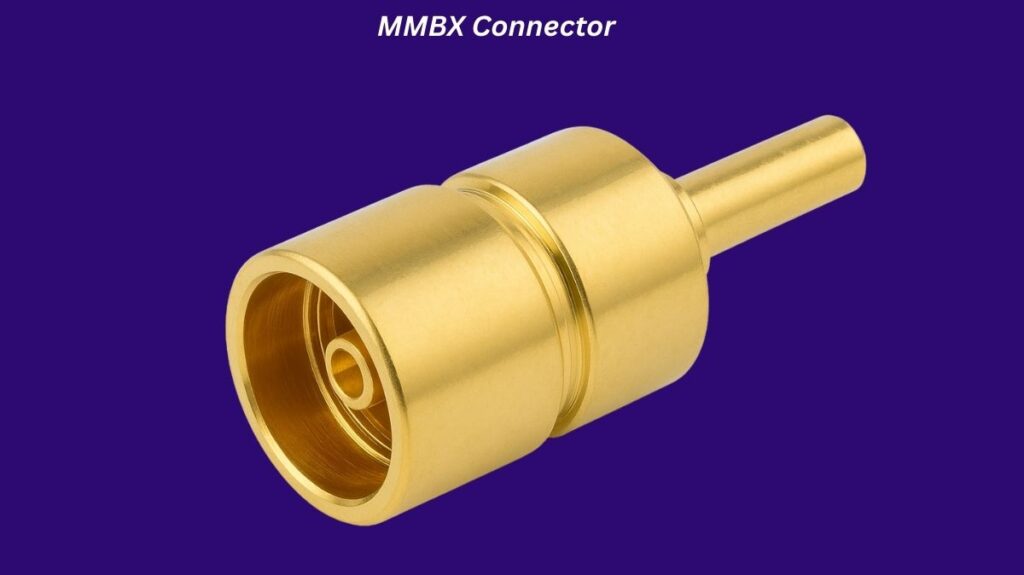

MMBX Connector
Micro-Miniature Board-to-Board (MBBX) connectors are tiny coaxial connectors made especially for high-frequency connections between boards and between modules. They are especially well-suited for uses where dependable signal transmission, high performance, and space savings are essential.
MMBX connectors are, to put it simply, tiny coaxial connectors that provide high-frequency, dependable signal transfer across circuit boards or modules, particularly in systems with constrained space.
You can also read 7/16 DIN Connector & Bayonet Neill Concelman BNC Connector
Key Features and Characteristics of MMBX Connectors
Compact Size and Small Footprint: MMBX connections are perfect for high-density, compact electrical devices since they are lightweight and incredibly small. They have one of the shortest minimum board-to-board distances in their class, at only 6.7 mm.
High Frequency and RF Performance: Depending on the particular design, they may effectively handle frequencies up to 6 GHz to 12.4 GHz and are usually operated with a 50 Ohm impedance.
Mechanical Misalignment Tolerance: Their capacity to correct for axial (lengthwise) and radial (side-to-side) misalignment is an important characteristic. Because it lessens the strain on solder joints and parts, this flexibility is essential for dependable connections in stacked or intricate circuit board assemblies.
Blind-Mateability: Even when the connections are not precisely aligned, mating is made simple by their design, which frequently includes a funnel-shaped opening. In high-density applications where direct visual alignment may be challenging, this “blind mating” feature is crucial.
Durability: MMBX connectors are made to withstand repeated connections; they are frequently rated for at least 100 connections.
Coupling Mechanism: A snap-on or slide-on coupling mechanism is usually used.
Applications
Applications requiring strong, high-frequency connections in a condensed area frequently use MMBX connectors. Typical uses consist of:
Telecommunications: Base stations, radio modules, and other wireless communication equipment are examples of telecommunications.
Industrial and Consumer Electronics: Devices with intricate circuit board stacks or those with limited space are classified as industrial and consumer electronics.
Medical Technology: Medical technology includes robotics and medical devices.
Test and Measurement Equipment: Used to mark test points on printed circuit boards (PCBs).

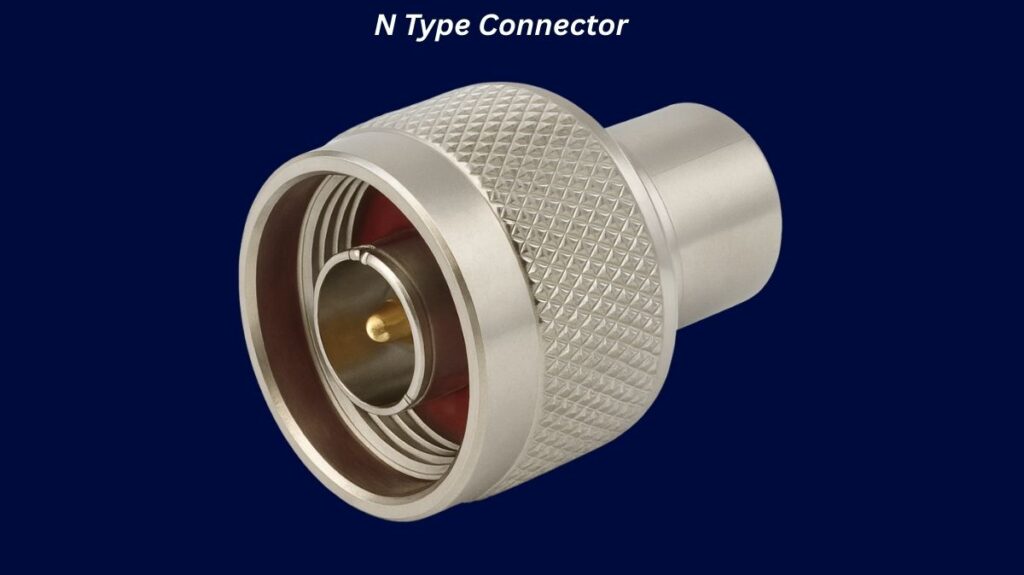

N Type Connector
The medium-sized, weatherproof, threaded N-type (or N connector) RF coaxial connector is made for high-frequency, high-power radio frequency (RF) applications. N-type connectors were created by Paul Neill in the 1940s and are renowned for their stability and longevity, which make them perfect for high-power and outdoor applications in consumer, industrial, and military electronics. They are frequently encountered in wireless Local area networks, radar equipment, broadcast systems, and telecommunications.
Key Characteristics
N-Type connections are renowned for their strength, ability to handle high power, and little signal loss.
Threaded Coupling: Their threaded screw mechanism, which offers a safe, steady, and vibration-resistant connection, is a distinguishing characteristic. Compared to bayonet-style connectors like the BNC, they are therefore more durable and weather-resistant.
Impedance: They are typically offered with an impedance of 50 Ω (Ohm), which is typical for the majority of wireless and radio frequency communication systems. There is also a 75 Ω variant, which is mainly used for broadcast and video applications. However, the connections may be damaged if the two are mated.
Frequency Range: Precision, upgraded N connections can function dependably up to 18 GHz, while standard N connectors are rated to operate from DC up to 11 GHz. One of the earliest connectors to handle microwave frequencies was this one.
Weatherproof: N connectors are appropriate for outdoor applications and severe weather conditions because, when correctly placed and tightened, they create a weatherproof seal.
Power Handling: In contrast to smaller connectors, they are able to manage comparatively large power levels.
Robustness and Durability: N-type connections are renowned for their resilience, which guarantees long-term operation and signal integrity.
Medium Size: They are placed in between larger, higher-power connections and smaller connectors, such as SMA.
Standardization: connectors made in accordance with the MIL-C-39012 specification are completely compatible with N-type connectors.
You can also read Types Of Coaxial Cable Connectors: F-Type, BNC, SMA & More
Common Applications
In the field of radio frequency, N connectors are a mainstay, used in numerous applications that demand a strong, high-power, low-loss connection.
Antennas: Attaching antennas to radio equipment, especially for Wi-Fi networks, amateur radio, cellular base stations, and other weather-sensitive equipment.
Telecommunications: Widely utilized in base stations, satellite systems, wireless LANs, and other wireless communication infrastructure.
Test and Measurement: Used on test equipment inputs, such as network analyzers and spectrum analyzers.
Broadcasting: Applies to broadcast systems and networks.
Radar Systems: Frequently used in military communication systems and radar equipment.
Military Equipment: Because of their stability and longevity, military radar and communication systems use this equipment.
Microwave and RF Applications: High-frequency and high-power radio frequency applications are often served by microwaves and radio frequency devices.

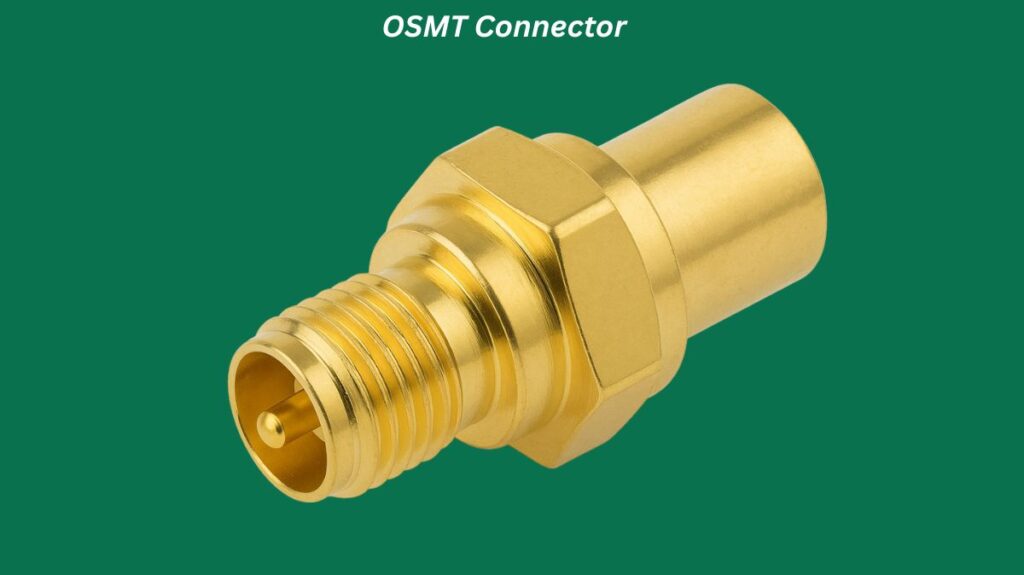

OSMT Connector
Surface-mount coaxial RF connectors known as OSMT (Over-Sized Miniature Threaded) connectors are made for high-density, board-level applications. They belong to a family of tiny connectors that emphasize dependable operation and a compact design for contemporary electronics.
Key Characteristics
Surface Mount Technology (SMT): In contrast to conventional through-hole connectors, Surface Mount Technology (SMT) connectors are made to be soldered straight onto a printed circuit board’s (PCB) surface. This makes them perfect for designing small, space-efficient designs and for automated assembly procedures (pick-and-place machines).
Small Footprint: Because of their renownedly small size, high-density electrical designs are made possible by the ability to space components and PCBs closer together.
Performance: OSMT connectors normally function at frequencies up to 6 GHz and are made for an impedance of 50 Ω. Because of this, they can be used in a variety of high-frequency and wireless applications.
Durability: Despite their small size, they have a rated number of mating cycles, usually around 100, which is adequate for the majority of in-box applications.
Applications: They are extensively utilized in fields where space is crucial, including as consumer and automotive electronics, GPS, and telecommunications.
OSMT vs. Other Miniature Connectors (e.g., SMP)
The purpose of OSMT connectors is comparable to that of other tiny blind-mate connectors, such as the SMP (Sub-Miniature Push-On). Nonetheless, there are a few significant differences:
Coupling: Although the name implies “threaded,” OSMT connections are frequently a part of a system that is push-on or slide-on, which is an important aspect of blind-mating. This makes mating quick and simple without requiring precise alignment or the use of tools.
Frequency: SMP connections are appropriate for more demanding applications since they often have a wider frequency range, frequently up to 40 GHz. For many common wireless standards, OSMT connections are a more affordable option due to their regular 6 GHz range.
Targeted Use: The intended use of OSMT connections is as an interconnect system for surface-mount applications, especially when used in a board-to-board or cable-to-board arrangement.
