Local Loop Network

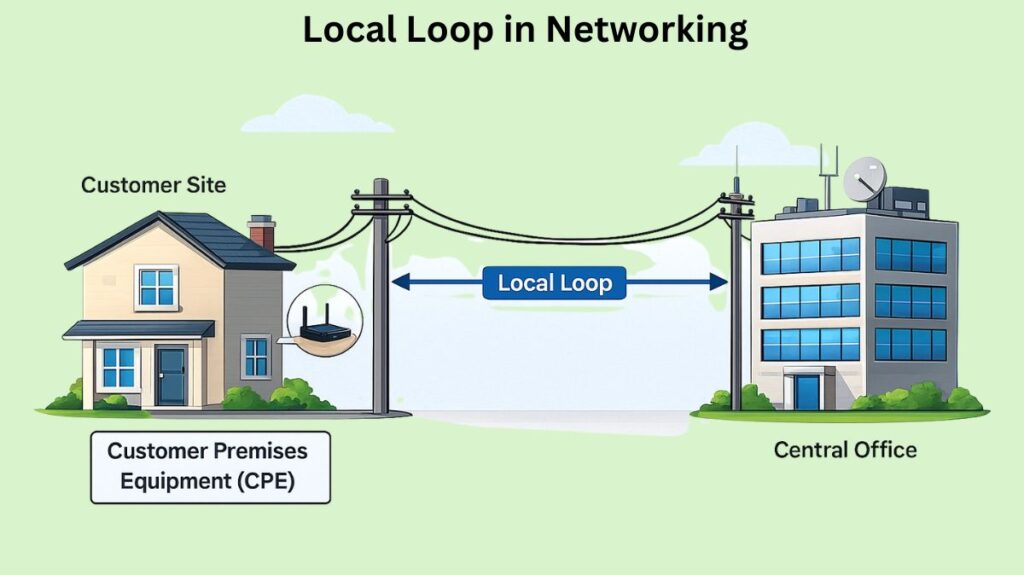

A key idea in telecommunications is the local loop, which is also commonly known as the subscriber line, local tail or, together, the last mile. It is the actual circuit or link that joins the client’s location to the common carrier’s or telecom service provider’s network infrastructure.
The infrastructure that makes it possible for basic services like phone calls, internet access, and other digital services depends heavily on this connection.
You can also read What is Channel Service Unit/Data Service Unit, How it Works
Local Loop Definition
The local loop is defined by its two main termination points:
- Start Point (Customer End): On the customer’s property, the local loop starts at the Network Termination Point (NTP) or the demarcation point (demarc). The demarcation is where the provider’s duty starts, and the customer premises equipment (CPE) stops.
- End Point (Provider End): The Central Office (CO), the closest local exchange, is where the local loop comes to an end. This link terminates in a circuit switch located within the telephone exchange or incumbent local exchange carrier in a conventional public telephone network. The wire may end at the Main Distribution Frame (MDF) inside the CO.
- Distance: Although the local circle is usually one or two kilometers long in suburban areas, it can be anything from one to ten km long.
The user’s connection to the closest concentrator, which multiplexes numerous connections to one or a small number of connections in order to connect to the ISP’s core network, is represented by the local loop.
Infrastructure and Composition
Traditionally, the local loop was designed as a dedicated electrical circuit for each customer:
- Traditional Wired Loop: Traditionally, the local loop was made up of a single pair of conductors, or a two-wire connection, that ran from the customer’s phone to the local exchange. Twisted-pair copper cables were typically used for this. These earlier copper loops frequently featured drawbacks such as crosstalk, high attenuation (signal degradation), low bandwidth, and symbol distortion.
- Modern Implementations: To supplement or replace copper, modern technology has offered a variety of media.
- Fiber Optic Cable: Fiber optics, sometimes referred to as Fiber to the Home or FttH/FTTP, is being used more and more to improve speed, dependability, and gigabit or greater speeds.
- Systems for Digital Loop Carriers.
- Coaxial cable.
- Wireless Local Loop (WLL): The Wireless Local Loop (WLL) system eliminates the need for physical copper wires by connecting users to the central telephone exchange using wireless radio links. This is frequently a more affordable option in remote or difficult-to-wire locations.
You can also read Data Terminal Equipment And Data Communication Equipment
Supported Services and Technology
The local loop transmits both analog and digital signals, supporting various communication applications:
- POTS (Plain Old Telephone Service): Traditional analogue speech and signaling are supported via POTS (Plain Old Telephone Service).
- DSL (Digital Subscriber Line): To offer high-speed data, DSL variations like ADSL and VDSL explicitly make use of the traditional copper wire of the local loop. DSL technology sends digital (data) and analogue (voice) impulses over the same line at the same time.
- The local loop has to connect to a DSL Access Multiplexer (DSLAM) in the Central Office in order to establish a DSL connection.
- ISDN (Integrated Services Digital Network).
- Fiber Broadband: High-speed broadband services are supported by fiber-based local loops.
Service quality is strongly impacted by the local loop’s efficiency; for broadband services like DSL, a shorter copper loop typically translates into faster available speeds.
Regulatory and Business Context
Local Loop Unbundling (LLU): A regulatory framework known as Local Loop Unbundling (LLU), which is especially prominent in Europe, mandates that the original local exchange carrier lease access to its local loops to rival service providers, often known as Competitive Local Exchange Carriers, or CLECs. The goal of this strategy is to encourage competition in the telecom industry.
Evolution of Broadband Delivery: Modern technologies like “fiber to the cabinet” (FTTC) reduce the copper distance, but classic ADSL uses the entire copper local loop to the telephone exchange. With FTTC, the phone service may still use the full original loop, but only the shorter “distribution subloop” delivers the high-speed broadband signal. VDSL equipment is installed in a street cabinet.
As the essential link between the individual user and the extensive telecommunications network, the local loop is vital since it forms the basis of contemporary digital life.
