Channel Service Unit/Data Service Unit
A CSU/DSU (Channel Service Unit/Data Service Unit) is a digital-interface device that connects Data Terminal Equipment (DTE) (like a router) or customer network equipment to a dedicated digital circuit supplied by a telecommunications carrier, like a T1 or T3 line for Digital Signal 1 (DS1).
It serves as these kinds of digital leased lines’ Data Communications Equipment (DCE). Since it converts data signals between the formats of the local network and the WAN service provider, the CSU/DSU is frequently regarded as the digital counterpart of a modem.
In order to ensure smooth and dependable data transmission, the device is essential for bridging the gap between a Local Area Network (LAN) and a Wide Area Network (WAN).
You can also read Compare Cisco Wireless Architectures And AP Modes In Network
Dual Functionality: CSU and DSU

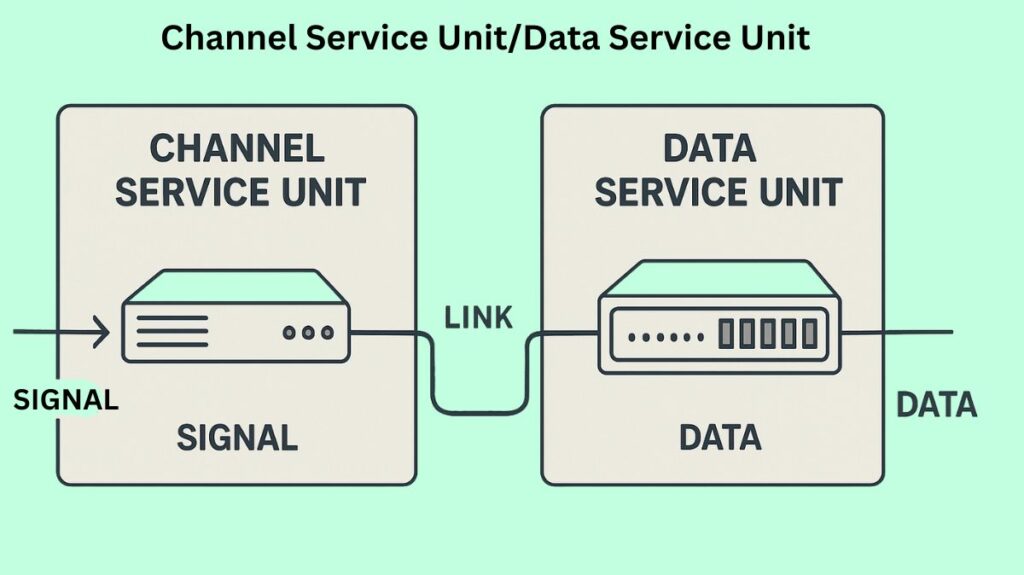

The CSU/DSU is typically a single piece of hardware but implements two distinct functions: the Channel Service Unit (CSU) and the Data Service Unit (DSU).
| Component | Responsibility | Details and Functions |
|---|---|---|
| CSU (Channel Service Unit) | Connection to the Telecommunication Network (Telecom Side) | The CSU is a line-bridging device for T-carrier systems. It provides the physical and electrical termination for the digital line. It is responsible for signal regeneration and line integrity. It acts as a barrier against electrical interference and monitors and tests the circuit to ensure the signal meets telco standards. It also performs loopback testing for diagnostics. |
| DSU (Data Service Unit) | Managing the Interface with the DTE (Customer Side) | The DSU converts the digital data from the DTE (router) into a format suitable for the service provider’s network. It manages timing and synchronization (clocking) and handles framing and format conversion, stripping off LAN encoding and formatting the data for the WAN. It also performs error correction and controls rate adaptation. |
How it works
Operating at the Physical layer (Layer 1), CSU/DSUs carry out a number of vital functions required to preserve high-quality digital communication:
- Signal Conversion and Conditioning: This process transforms the digital data frame from LAN communications technology into a WAN-compatible frame. To preserve data integrity throughout the network, it carries out signal conditioning.
- Timing and Synchronization (Clocking): Controlling the timing of data transmission is an extremely important task. The router (DTE) receives the timing signal (clocking) from the CSU/DSU, which is the DCE.
- Error Handling: It handles error repair by identifying mistakes in the data stream and retransmitting impacted packets, among other corrective measures, to preserve data integrity and improve network dependability.
- Diagnostics and Line Management: By offering diagnostic capabilities, they enable administrators to conduct loopback testing, keep an eye on line performance, and promptly detect and resolve problems.
You can also read Console Port Cisco Switch Configuration: Step-by-Step Guide
Usage Context and Installation
Businesses that use dedicated digital leased lines, including T1, E1, or T3 connections, are especially obliged to have CSU/DSUs. For situations that need for reliable, high-capacity data transfer, they are essential, especially for applications like voice, video, or big data transfers. The same communications standard must be applied to the units at both ends of the digital connection.
These devices, which are situated at the subscriber’s location and connect to the demarcation point (demarc), where the service provider’s obligation stops, are sometimes referred to as Customer Premises Equipment (CPE).
The device can be installed in a few ways:
- External Standalone Unit: A distinct hardware box that is attached between the router and the service provider’s line is known as an external standalone unit.
- Integrated Card: A modular card that fits straight into a router slot, like a WAN Interface Card (WIC), can incorporate CSU/DSU capability.
Distinction from a Modem
Despite being frequently compared to a modem, the CSU/DSU has a very distinct function depending on the kind of signal it handles:
Modem: An analogue phone line or broadband connection (such as cable or DSL) requires a modem. It converts digital data to analogue signals and vice versa using modulation and demodulation.
CSU/DSU: Only used for T-carrier digital leased lines. It transforms digital data into a line-coding or framing-compatible digital data format that is appropriate for high-speed digital circuits. They are not intended for use with standard home connections, such as cable or DSL.
A CSU/DSU can be compared to a quality assurance inspector and universal translator stationed at a digital border crossing. While the inspector (CSU) verifies the passport (line integrity), regenerates the signal, and provides a clear point of handover to the border patrol (telecom carrier), the translator (DSU) ensures that the language (data format) used by the local network (LAN) is fully understood by the foreign network (WAN).
